Home > Products > LED drivers > 9V 1a power adapter/9V 2A power supply/9V 3A wall power adapter with super good quality

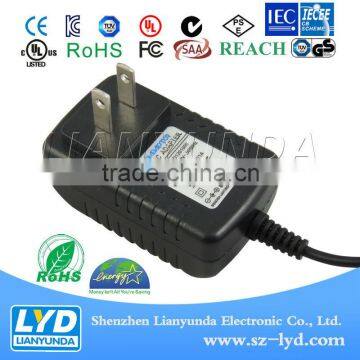

9V 1a power adapter/9V 2A power supply/9V 3A wall power adapter with super good quality
- Shen Zhen
You May Like
-
LED Power Supply Driver 100W For 100Watt High power LED Light Lamp Bulb 85-265V
-
Factory Wholesale 36v 1000mA LED converter
-
Single output 301 - 400W ac dc switching power supply 24v 15a power adapter with CE ROHS FCC
-
Shenzhen manufacturer Switching AC/DC power adapter 24v 1a with eu us uk au wall plug
-
12v dc switching adapter 12v 3a 36w led driver
-
12v 3a UL Class2 LED driver wall-mount Power Supply
Product Details
| Place of Origin | Guangdong, China | Brand Name | LYD | |
| Model Number | LYD0903000 | Output Type | DC | |
| Connection | Plug In |
Product Description
9V 1a power adapter/9V 2A power supply/9V 3A wall power adapter with super good quality
Details
1) input voltage: AC 100-240V 50/60HZ
2) range voltage: AC 90-264V 47/63HZ
3) output Power:27W
4) output voltage:9V
5) output currency:3A
Safety Approvals
UL/CUL, PSE, GS, BS, CE, CB, FCC, and EK-Mark,CCC Certification
Protections
1)over voltage protection: 120%min
2)over current protection: 120%min
3)over protection
4Short-circuit protection: automatic recovery
5Load regulation: ±5%
Environmental requirement
1)operating temperature: 0-40
2)storage temperature: -20-85
3)opera ting relative humidity:595%RH
4) Withstanding voltage: AC 3,000V (minimum), 5mA (maximum)
5Insulation resistance: DC 500V 100MΩ (minimum)
Brand name: LYD
Advantages
1. AC input power suitable for the world
2. Soft-start current can reduce the AC input impact efficiency
3. With short-circuit and overload protection
4. Compact size ,light weight
5. 100%full-load burning test
6. Installed with EMI filter ,minimum wave
Oupt power range | 5-48V,0-5000mA(also have those models for selection) |
The charger size | 5.5*2.1*10 cm |
Input Rated Voltage | 100Vac~240Vac |
Input Frequency Range | 50Hz~60Hz |
Input Current | less than 0.5A |
Input Inrush Current | less than 50A |
Efficiency | 90%(MIN)at Rated Voltage |
DC Output Voltage | 9V (option) |
DC Output Current | 3A (option) |
DC Output Power | 27W (optional) |
Leakage Current | less than 5mA |
Standby power | less than 0.5w |
Ripple and Noise | less than 120Mv at full road with 20MHz bandwidth |
Turn On Delay Time | less than 3S (AC:110V and full load) |
Certificates | CE GS UL/CUL FCC ROHS SAA PSE TUVGS KC CLASS2 UL1310 |
Dielectric Voltage | A IEC320 three pin input---output(FG)3000Vac one minute |
Safety protection | output voltage protection (150%-180% rated output current) |
output current protection (150%-180% rated output current) | |
short current protection | |
Operating Temperature | -10°C - +45°C |
Storage Temperature | -20°C - +40°C |
Safety Standard | EN60950-1 UL60950-1 ESD (EN61000 3-3) |
CAS (60950 ITE/TE) FCC Part 15 subpart B Class B | |
ISO 9001: 2008 |
