Home > Products > Interchangeable plug power adapter > New Products on China Market~Interchangeable Ac Plug High Quality 5v 1a Power Adapter

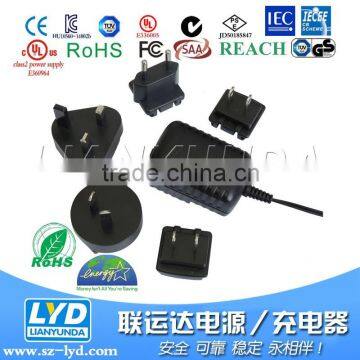

New Products on China Market~Interchangeable Ac Plug High Quality 5v 1a Power Adapter
- shenzhen
You May Like
-
Universal Interchangeable AC Plugs 12V 3A Power Adapter on Sale
-
2015 Newest Design Interchangeable Adapter 5v1a Power Adapter
-
2015 New Arrive Nice Design 12v 2a Interchangeable Power Adapter
-
Interchangeable Plug Power Adapter 5V3A
-
New Design 2016 24v 0.75a Power Adapter High Quality Interchangeable Plug Power Adapter
-
High Performance Best Selling Free Sample 5v 1a Usb Travel Charger Power Adapter
Product Details
| Place of Origin | Guangdong, China | Brand Name | LYD | |
| Model Number | LYD0501000 | Output Type | DC | |
| Connection | Plug In |
Product Description
Output power range | 5V 1A |
Input Rated Voltage | 100Vac~240Vac |
Input Frequency Range | 50Hz~60Hz |
Input Current | less than 0.5A |
Input Inrush Current | less than 50A |
Efficiency | 68%(MIN)at Rated Voltage |
DC Output Voltage | 5v± 5% |
DC Output Current | 1A (Optional) |
DC Output Power | 5w (optional) |
Leakage Current | less than 5mA |
Standby power | less than 0.5w |
DC connector | 5.5*2.1*10mm (optional) |
DC cable | 1.2m 2464 UL 18AWG cable (optional) |
Ripple and Noise | less than 120Mv at full road with 20MHz bandwidth |
Turn On Delay Time | less than 3S (AC:110V and full load) |
Certificates | CE GS UL/CUL FCC ROHS SAA PSE TUVGS KC CLASS2 UL1310 |
Dielectric Voltage | A IEC320 three pin input---output(FG)3000Vac one minute |
Safety protection | output voltage protection (150%-180% rated output current) |
output current protection (150%-180% rated output current) | |
short current protection | |
Operating Temperature | -10°C - +45°C |
Storage Temperature | -20°C - +40°C |
Safety Standard | EN60950-1 UL60950-1 ESD (EN61000 3-3) |
CAS (60950 ITE/TE) FCC Part 15 subpart B Class B | |
ISO 9001: 2008 |
Contact Us
- Shenzhen Lianyunda Electronics Co., Ltd.
- Contact nameLI yuan Chat Now
- Phone0086-755-27825520,27587573
- AddressSix Floor, Maocheng Building,Xicheng Industrial Area, Bao'an District , Shenzhen, Guangdong
