DOE VI Energy Efficiency 12V 8A Desktop Switching Power Supply AC/DC Adapter for Hoverboard With CE/FCC Approval
- Shenzhen
You May Like
-
Shenzhen ODM OEM DOE VI Energy Efficiency Cigarette Machine Parts 12v 30a Switching Power Adapter With RoHS CE Approval
-
High Quality Level VI Power Adapters Adaptors 12 Volt 5 Amp for 3D Printer Comply With UL GS CE SAA
-
2016 Hot & New Products America Energy Efficiency Level VI 12V 4 Ports CCTV Switch Power Supply
-
Energy Efficient Level VI Power Adapter 12v 1a Adapter
-
2016 New Plastic Electrical Power Supply, 12v 5a 3pin Power Supply With Level VI Energy Efficiency
-
High Quality Factory Price 400~600W Model Switching Power Supply PFC
Product Details
| Place of Origin | Guangdong, China | Brand Name | LYD | |
| Model Number | LYD1208000 | Output Type | DC | |
| Connection | Desktop |
Product Description

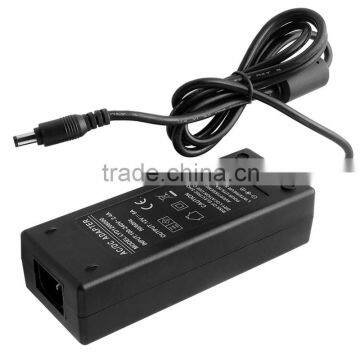

12V 8A Desktop switching power supply AC/DC adapter for hoverboard with CE/FCC approval
Oupt power range | 12V6A 24V4A 36V3A (also have those models for selection) |
The adapter size | 152*62*38mm |
The adapter weight | 560g/pcs |
Input Rated Voltage | 100Vac~240Vac |
Input Frequency Range | 50Hz~60Hz |
Input Current | less than 0.5A |
Input Inrush Current | less than 50A |
Efficiency | 80%(MIN)at Rated Voltage |
DC Output Voltage | 12V± 5% (option) |
DC Output Current | 8A (option) |
DC Output Power | 96w (optional) |
Leakage Current | less than 5mA |
Standby power | less than 0.5w |
DC connector | 5.5*2.1*10mm (optional) |
DC cable | 1.5m 2464UL 16AWG cable (optional) |
Ripple and Noise | less than 120Mv at full road with 20MHz bandwidth |
Turn On Delay Time | less than 3S (AC:110V and full load) |
Certificates | CE GS UL/CUL FCC ROHS SAA PSE TUVGS KC CLASS2 UL1310 |
Dielectric Voltage | A IEC320 three pin input---output(FG)3000Vac one minute |
Safety protection | output voltage protection (150%-180% rated output current) |
output current protection (150%-180% rated output current) | |
short current protection | |
Operating Temperature | -10°C - +45°C |
Storage Temperature | -20°C - +40°C |
Safety Standard | EN60950-1 UL60950-1 ESD (EN61000 3-3) |
CAS (60950 ITE/TE) FCC Part 15 subpart B Class B | |
ISO 9001: 2008 |
1. Used TDK, ST, ON, Rubycon, IR, Toshiba imported materials.
2. 100% of full load burn-in test through the long period of time, effectively guarantee the stability of product quality.
3. Product has overvoltage, overcurrent, overload, under voltage, over temperature protection function.
4.Complete the proof: 2-3 days; Complete the rapid response delivery: 7~15 days; Any inquiries will be replied within 24 hours
5. 1~2 years warranty, if there was any default units, take some pictures, we will replace the related quantity.
6. Our products with UL, CUL, TUV/GS, PSE, SAA, C-Tick, CE, FCC, CB, KC, RoHS approved.
Inner package: PE bags and white box or as you demand;
Outer package: Carton or according your requirement
Shipping details: 7~12 days
