Home > Products > CCTV Power Adaptor > camera balum cctv power supply power 12v 1.5a

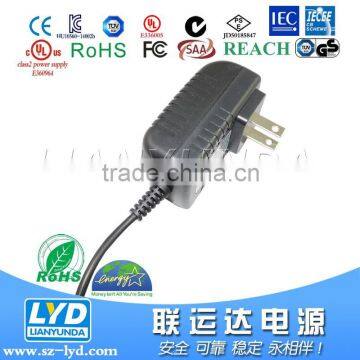

camera balum cctv power supply power 12v 1.5a
- shenzhen
You May Like
-
ac to dc power supply 16v 2.5a
-
12v1.5a power adapter for cctv camera,shenzhen electronics co ltd
-
EU/US plug 12v 2a 24w switching power supply with UL Class2 for massage chair
-
24V 4A worldwide portable Universal travel charger with PSE KC CE certifiction
-
Wall-mount type 12v 3a AC power adapter with US Plug for LED Strip Light UL Class2 certification
Supplier's Choice
-
100W Single Output 24v 4a power adapter for medical equipment with UL GS CB IEC
Supplier's Choice
Product Details
| Place of Origin | Guangdong, China | Brand Name | LYD | |
| Model Number | LYD1201500 | Output Type | DC | |
| Connection | Plug In |
Product Description
Oupt power range | 12v 6a ,5v 3a, 24v 4a ,36v,2.7a 48v 2a (also have those models for selection) |
The adapter size | 85*48*32mm |
The adapter weight | 120g/pcs |
Input Rated Voltage | 100Vac~240Vac |
Input Frequency Range | 50Hz~60Hz |
Input Current | less than 0.5A |
Input Inrush Current | less than 50A |
Efficiency | 80%(MIN)at Rated Voltage |
DC Output Voltage | 12V± 5% (option) |
DC Output Current | 1.5A (option) |
DC Output Power | 18W (optional) |
Leakage Current | less than 5mA |
Standby power | less than 0.5w |
DC connector | 5.5*2.1*10mm (optional) |
DC cable | 1.2m 2464UL 22AWG cable (optional) |
Ripple and Noise | less than 120Mv at full road with 20MHz bandwidth |
Turn On Delay Time | less than 3S (AC:110V and full load) |
Certificates | CE GS UL/CUL FCC ROHS SAA PSE TUVGS KC CLASS2 UL1310 |
Dielectric Voltage | A IEC320 three pin input---output(FG)3000Vac one minute |
Safety protection | output voltage protection (150%-180% rated output current) |
output current protection (150%-180% rated output current) | |
short current protection | |
Operating Temperature | -10°C - +45°C |
Storage Temperature | -20°C - +40°C |
Safety Standard | EN60950-1 UL60950-1 ESD (EN61000 3-3) |
CAS (60950 ITE/TE) FCC Part 15 subpart B Class B | |
ISO 9001: 2008 |
