Home > Products > Irons & Ironing Table > TDZG-Q3 Industrial Vacuum Board With Steam Boiler

TDZG-Q3 Industrial Vacuum Board With Steam Boiler

FOB Price

US$ 680 - 780 / Set

1 Set(Min. Order)

Port Shanghai or Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Brand Name	UNIQUE
Model Number	TDZG-Q3

Packaging Details

Wooden case

Product Description

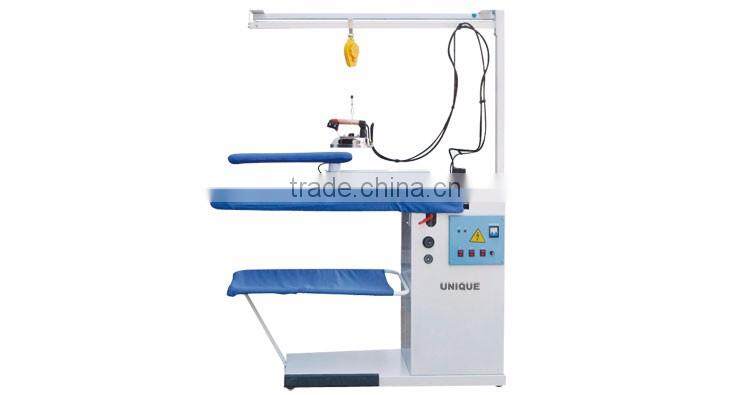

TDZG-Q3 industrial vacuum board with steam boiler

TDZG-Q3 series are with heating element and most impotantly, it has a built-in steam boiler.

Features

1) Net support is made of stainless steel, ensures a long life.

2) Good quality holey sponge, with ideal air permeability and strong air suction.

3) Lower noise than average, friendly to operator.

Specifications

Model	TDZG-Q3
Table size	400X1200 mm
Vacuum motor power	550 W
Vacuum pressure	≥150 Pa
Table heting power	1000 W
Buck heating power	350 W
Steam boiler power	3500 W
Steam genaration	4 kg/h
Steam pressure	0.4 Mpa
Power supply	220V/1PH 380V/3PH
Speed	2800 rpm
Gross weight	107 kgs
Packing size	14905901120 mm

Options

Similar Products

Models explaination:

Table Type	TP series	Vacuum always open when working
	TD series	Vacuum on / off can be controlled via limit switch
	TDZ	TD + heating
	TDG	TD + built-in steam generator
	TDC	TD + blowing function
	TDZG	TD + heating & built-in steam generator
	82X122	Table size in cm
	/	Flat table
	A	Table with arm with buck
	AU	Table with arm with buck & chimney
Piano Type	TDZ-Q	TD + heating
	TDZC-Q	TD + hating & blowing function
	TDZG-Q	TD + heating & built-in steam generator

For example, TDZ-82X122A is an ironing table with limit switch controlling vacuum on / off; inside table there is heating tube, and its table size is 82mm in width and 122mm in length; on table it is with an arm with buck.
