Good quality juice bottling equipment from 1000bph to25000bph
- 5 Set / Sets per Month
- FOB shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Beverage | |
| Packaging Type | Bottles, Cans, Cartons | Packaging Material | Plastic, Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380V 50Hz or by order | Power | 6-19KW | |
| Place of Origin | Jiangsu, China | Brand Name | Xinmao | |
| Model Number | RCGF Series | Dimension(L*W*H) | up to the capacity | |
| Weight | 2800-12000KG | Certification | CE and ISO 9001:2000 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1. Computer Control System , juice bottling equipment
2. Full Automatic , juice bottling equipment
3. All Stainless Steel, juice bottling equipment
Good quality juice bottling equipment from 1000bph to25000bph
Products Introduction

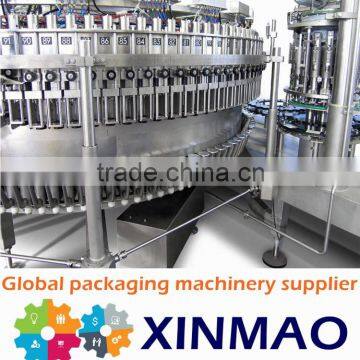

This machine has washer,filler,capper three functions in one body, it is automatic in total process and suitable for PET bottled juice and tea drink which can resistant high temperature. It makes by high quality SUS304, key parts are precision machined by NC tool.
Characteristics
1.Using the wind sent access, with clamp hanging the bottle neck ; which can keep the bottle shape and high-speed.
2.Washing bottle mouth with special designed washing manipulator,clip in the bottle neck, stable and avoid secondary pollution.
3.Filling uses lifting valve, adopts micro pressure filling principle to ensure correct filling.
4.Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Technical Parameters
| Model | Washing heads | Filling heads | Capping heads | Productivity(b/h) (500ml) | Motor power (kw) | Overall dimension (mm) | Weight (kg) |
| RCGF14125 | 14 | 12 | 5 | 3000-4000 | 6 | 2250*1600*2300 | 2800 |
| RCGF18186 | 18 | 18 | 6 | 5000-6000 | 6 | 2300*1700*2300 | 3000 |
| RCGF24248 | 24 | 24 | 8 | 8000-12000 | 7 | 2900*1900*2300 | 5000 |
| RCGF323210 | 32 | 32 | 10 | 12000-15000 | 9 | 4300*3500*2300 | 6000 |
| RCGF404012 | 40 | 40 | 12 | 15000-18000 | 13 | 4300*3900*2300 | 8000 |
| RCGF505012 | 50 | 50 | 12 | 18000-22000 | 16 | 4600*4300*2300 | 10000 |
| RCGF606015 | 60 | 60 | 15 | 20000-25000 | 19 | 5100*4600*2300 | 12000 |
Washing Part
Filling Part
Capping Part
Our Factory
Packing
Our Spare Parts Supplier
Our Certification
Our customer factory
Why us
Expericed in beverage filling machine more than 15 years
Free technical support&consultation
Professional & fast after service team
Delivery in time
Contact
Any question about this machine or the production line,please contact with us.
Xinmao staff are glad to be at your service.
