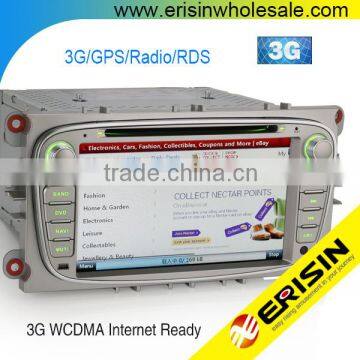

Erisin ES7608M 7 inch 2 Din Car Audio System with GPS for Mondeo

Erisin ES7608M 7 inch 2 Din Car Audio System with GPS for Mondeo

General

 Power Supply

 DC 12V (allowance range: 10.8-14.5V)

 Max. Current

 10A

 Button Light Colors

 Red/Green/Blue/Yellow/Magenta/Cyan/White

 Front panel Size

 110mm(H)*220mm(W)

 Package Size

 330mm*260mm*180mm

 Gross Weight

 3.5kg

 Net Weight

 3.0kg

Display

 Screen Type

 7 inch Touch Screen

 Resolution

 800*RGB*480

 Built-in Clock and Calendar

 Yes

 Built-in Games

 Yes, 6 Games for your choice

 Built-in Calculator

 Yes

 Screensaver

 Yes, you can setting screensaver to 15s/30s/60s

 Wallpapers

 10, and you can update user's wallpaper from GPS Card

 Boot Logo

 102 Starting Logos to choose

 Drag and drop Icons

 Yes, the position of icons can be changed at will

 Change the backlight

 Yes, you can choose day/night backlight and adjust

 One Button for Blank Screen

 Yes, shut off display but keep sound in the evening

 Digital or Analog

 Digital Touchscreen, very vivid

Setup

 Beep

 On/Off

 Menu Languages

 English/Chinese/Russian/Turkish/French/German/Italian/Spanish/Portuguese/
 Hebrew/Arabic/Polish/Thai

 Bluetooth

 Auto Answer: On/Off, Auto Connect: Yes/No

 Navigation

 Volume mixed/Auto to Navi when power on...

 EQ Setup

 Support the newest 10-Band EQ

 Sound

 User/Flat/Pop/Rock/Jazz/Class

 Video

 Yes

 Steering Wheel Control

 Yes

 RDS

 Yes

 Date & Time

 Clock/Date/Week/Time Zone adjustable or GPS Time

 Factory Setup

 Yes, the code is 3711

3G

 Connector

 On the Back

 3G Standard

 WCDMA only

 3G Dongle included

 No, you can contact us to buy it together

 Explorer

 Opera

GPS

 Operation System

 Microsoft Windows CE. Net 6.0

 CPU

 MTK3360 800MHz

 Internal

 256MB RAM, Dual Core

 External Memory Size

 Can expand to 32GB

 Support Maps

 IGO, SYGIC, Garmin...

 Voice Guidance

 Yes

 Support 2D/3D Map Views

 Yes

 Dual Zone

 Yes, navigating while music playing

 GPS Operation Languages

 English/German/French/Spanish/Portuguese/Italian/Dutch/Finnish/Greek...

 Free 8GB Card included

 Yes, support google maps online navigating

DVD

 Decode IC

 SUNPLUS 8202VGQ

 Compatible Format

 DVD, DVD-R/RW, HDVD, MP3, MP4, CD-R/RW, VCD, DIVX, WMA/JPEG

 Audio/Subtitle Languages

 English/Italian/French/Spanish/Portuguese/German/Russian/Arabic..

 Divx Title

 Unicode/UTF8/ASCII

 Last-Position-Memory

 Yes, expediently watch all kinds of disc continuously

Bluetooth

 BT Hands Free

 Yes

 A2DP (Bluetooth Stereo Music)

 Yes, can play stereo music through Bluetooth

 Bluetooth Music Control

 Yes, play/pause/previous/next

 PB-Download

 Yes, can download phonebook from mobile to this unit

 PB-Search

 Yes, can search contact member in downloaded PB-Listings

 Calling Records

 Yes, Dialed Call, Received Call, Missed Call

 Built-in Microphone

 Yes, on the front panel

 External Microphone Jack

 Yes, on the back

Radio

 AM Frequency Range

 522-1620KHz

 AM Increment

 9KHz(EU)/10KHz(US)

 FM Tuning Range

 87.5-108MHz

 FM Increment

 0.05MHz(EU)/0.1MHz(US)

 FM Area

 Europe/USA1/USA2/Japan/Russia

 RDS

 On/Off

 Preset Stations

 30(FM 3*6, AM 2*6)

IPhone

 Built-in iPhone Audio Decoder

 Yes

 Port

 USB1/USB2, use USB charge cable to connect

 Compatible

 iPhone4/5/6/iPod/iPad

 Charge the connected Device

 Yes

 Control Device play from the Screen

 Yes

 iPhone Video Input

 NO

USB

 Position

 USB1/USB2 Port, On the Back of unit

 Capacity

 16GB

 Play MP5 Videos

 Yes, can play RMVB Videos up to 1080P

 Touch Music Title to play directly

 Yes

SD

 Position

 On the front panel

 Capacity

 16GB

 Play MP5 Videos

 Yes, can play RMVB Videos up to 1080P

 Touch Music Title to play directly

 Yes

DVR-IN

 External Port for Car Recorder Input

 Yes

 Supply Power to connected car DVR

 Yes, you can connect our Car DVR to achieve this function

 Touch Control the connected DVR

 Yes, you can connect our Car DVR to achieve this function

 External Car DVR incl.

 No, you can contact us to buy it together

DTV-IN

 External Port for DTV Box Input

 Yes

 Support DTV Box Standard

 DVB-T/ATSC/ISDB Box

 Supply Power to connected DTV Box

 Yes, you can connect our TV Box to achieve this function

 Touch Control connected DTV BOX

 Yes, you can connect our DTV Box to achieve this function

 DTV Box incl.

 No, you can contact us to buy it together

Additional

 VMCD

 Yes, support virtual 10 CD changer

 Games

 6 built-in Games

 Calculator

 Yes

 Calendar

 Yes

Input

 AUX Video In

 One

 Rear-View Camera Video In

 One

 External Microphone In

 One

 AUX Audio In

 R/L

 DTV Box In

 One

 Car DVR In

 One

 Radio Antenna In

 One

 GPS Antenna In

 One

Output

 Video Out

 Two

 Audio Out

 FR/FL/RR/RL

 Surround Stereo Out

 4 x50w

 Subwoofer Out

 One

Control

 Steering Wheel Control

 Yes

 Reverse Control

 Yes

 ANT/AMP Control

 Yes

 Hand Brake Control

 Yes

 iPhone music play Touch Control

 Yes

 Ext. Car DVR Touch Control

 Yes

 Ext. DTV Box Touch Control

 Yes

 Illumi Control

 Yes

Accessories

 User's Manual in english

 One

 Power Cable with special Connector

 One

 FORD CanBus Decoder Box

 One

 USB OTG Cable

 One

 RCA Cable

 One

 GPS Antenna

 One

 8GB Card

 One
