the metal stamping progressive die main advantage as below:

1. it belongs to mechanical high-speed metal stamping tool.

2. it have high-efficiency and high-output.

3. the life span of die not less than one hundred million stamping times.

4. the process cost is very lower than single punch die.

5. it can be completed automatic stacks of single sheet.

6. it will can be saved the raw material .

ABOUT THE STAMPING PROGRESSIVE DIE:

  1.The double-row  revolving slot progressive die for lamination stator and rotor.

  2. Punch chip & insert  material: tungsten steel.

  3. Type: high-speed progressive die for double row revolving slot

  4. Form: all sheet will be finished automatic stack by the tooling.

  5. Life span: not less than one hunderd million stamping times.

  6. the tungsten punch chip should be grinded after every 2 million stamping times.

  7. Process mode: CNC, EDM slow wire cut and fast wire cut etc.

  8. all process have a rigorous quality control procedure.

  9. we have a rich experience technology team for die assembling.

 10. we are ready to some spare parts of tool for my customer.

 11. we always try hard control our quality and details. guarantee the life span of die  and reduce the repair times and cost.

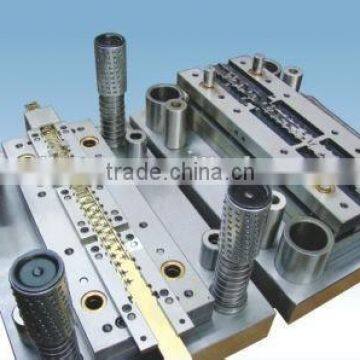

 Some metal stamping striplayout:

About our product feature:

1.All punch chip use tungsten steel to stamping , The comprehensive service life span of the tool is not less than ten million stamping times. Tungsten steel edge should be grinded within 2 million stampings per time. but any details according to customer reuquires.

 2.all price will precision count by my engineer and provide a competitive price for my customer. let all product have good value for money.

3.Consider to convenience, it's simple assembly to our mould. and lower cost for maintenance , special after-sales service and  regular maintenance and  grind punch chip.

4. we have a experienced design and manufacture team. and it's important to each details for us. we very care the finally and key requires. the good quality and warm service always  promise and  practice to my customers. meanwhile, we won the  affirmation and trust of them.

5.we can provide design drawings 2D and 3D files to my customers. and technology support.

6. we have complete test system and instrument. and Issued quality inspection sheet by Jiarun Quality inspection department .

7.As to the problem in the tooling manufacture process. main department will  organize discussion and solution.

8.Competitive quality will be checked anytime. and on-time delivery will be guarantee.

9. Safe packing and some parts of extra free .

10.reasonable min order quantity.

Technology details

Design

A major engineering function is to work closely with customer personnel to ensure that the die design is the most economical and efficient for the type and complexity of the specific lamination. Engineering can assist in the customer’s product development by providing prototypes for test and evaluation using notch for laminations.

Prototype Manufacturing Services

Your lamination prototype is in good hands with the experts at Jiarun Tool and Die. For over decades, we have provided design engineers fast prototyping services in a wide range of industries and applications. We effectively communicate your project status through every step of the prototype cycle. Our manufacturing operations are designed for maintaining fast turn-around and expedited delivery.

 Stamping

The Jiarun Tool and Die Stamping Department is equipped with a variety of high-speed presses with capacities up to 60 tons. In addition to production quantities, we can produce prototypes and short runs at economical prices including tooling with very short lead times. This is accomplished by using various processes that, depending upon the tolerances and complexity of the part, include notch tooling.

Production Manufacturing Services

Once your prototype achieves functionality, efficiency and quality, our manufacturing centers can quickly and cost effectively scale-up production to high-volume runs. We will help you determine the best manufacturing process available for your project, and assist in tailoring a customized manufacturing solution using our Lamination Stamping manufacturing method.
