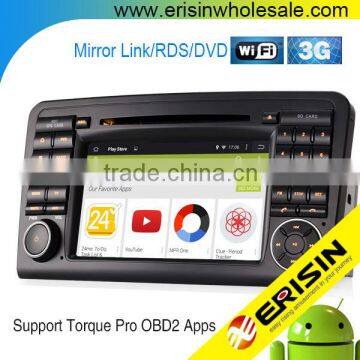

Erisin ES2511B 7" Mercedes X164 W164 2 Din Car DVD CD Player with GPS OBD 3G WiFi

Erisin ES2511B 7" 2 Din Audio Car DVD GPS with OBD for Mercedes ML W164

General

 Power Supply

 DC 12V (allowance range: 10.8-14.5V)

 Max. Current

 10A

 Screen Size

 7 inch

 Front panel Size

 270mm(Top width)*140mm(High)*258mm(Bottom width)

 Package Size

 330mm*260mm*180mm

 Gross Weight

 3.5kg

 Net Weight

 3.0kg

System

 Operation System

 Google Android 4.4.4

 CPU

 Quad-Core Cortex-A9-Architecture 1608MHz

 ROM

 0.98GB

 RAM

 1GB

 Internal SD Card

 12.53GB

 Extended SD Card

 Support TF Card up to 32GB

Display

 Touch Screen

 Yes

 Resolution

 1024*600

 Capacitive or Resistance Screen

 Capacitive

 Built-in Clock and Calendar

 Yes, show real time and can use network-provided time

 DIY main menu display

 Yes, You can drag Search Music/Radio/BT Stereo ,Search bar Bookmarks
 or App-Icon to main menu

 Change Apps-Icon Position

 Yes

 Display Weather Forecast

 Yes

WiFi/3G

 Connector

 On the Back

 WiFi

 Built-in WiFi Modem, support 802.11b/g/n

 3G

 3G Modem not included, 3G universal Drive, support external USB Dongle:
 WCDMA, EVDO, TD-SCDMA

Internet

 Explorer

 Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection

 Online Entertainment

 Online Video, TV, Movie, Music, Radio, Video Chat

 Online Navigation

 Online Google Maps Navigating

 Online Games

 Yes, online play or you can download it from google play store

 Online Communication

 keep connected through WeChat, Twitter, Facebook, Gtalk, Gmail...

 Read and edit Office Software

 Yes, support Word, Excel, Powerpoint, PDF, TXT

Audio

 Format

 MP3/WMA/MP2/OGG/AAC/MA4/FLAC/APE/WAV etc. Could play via song list

 Record

 MP3, WMA

 Other

 LRC synchronized display; ID3 search; Search by files; Album Picture;
 User-defined audio effect

 Audio IC

 Top Global Cirrus IC, independent audio decoding

 SNR

 Noise rations:≥90dB

Video

 Format

 Support AVI (H.264, DIVX, XVID), rm, rmvb, MKV (H.264, DIVX, XVID).
 WMA, MOV, MP4 (H.264, MPEG, DIVX, XVID). DAT (VCD format). VOB (DVD
 format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP, MPG ect.
 ≥30 formats, playing internet video directly (while downloading)

 Play

 Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot

 Video Output

 HDMI 720P to1080P. full HD output and common video output(AV)

GPS

 Operation System

 Android 4.4.4

 Support Maps

 IGO, SYGIC maps for Android 4.4.4

 Free 8GB TF Card included

 Yes

 Voice Guidance

 Yes

 Support 2D/3D Map Views

 Yes

 Dual Zone

 Yes, navigating while music playing

 Online Navi

 Yes, support google maps online navigating

DVD

 Decode IC

 8202VGQ

 Compatible Format

 MP4, AVI, DIVX, DVD, VCD, MP3, CD, WMA, JPEG

 OSD/Audio/Subtitle Language

 English/Italian/French/Spanish/Portuguese/German/Russian..

 Auto-Save Function

 Yes, expediently watch all kinds of disc continuously

Bluetooth

 Hands Free

 Yes

 A2DP (Bluetooth Stereo Music)

 Yes, can play stereo music through Bluetooth

 Bluetooth Music Control

 Yes, play/pause/previous/next

 PB-Download

 Yes, can download phonebook from mobile to this unit

 PB-Search

 Yes, can use the first letter to search contact member in PB-Listings

 Calling Records

 Yes, Dialed Call, Received Call, Missed Call

 Setup

 Auto Answer, Auto connect, Device name

 Built-in Microphone

 Yes, on the front panel

 External Microphone Jack

 Yes, on the back

Radio

 AM Frequency Range

 522-1620KHz

 AM Increment

 9KHz(EU)/10KHz(US)

 FM Tuning Range

 87.5-108MHz

 FM Increment

 0.05MHz(EU)/0.1MHz(US)

 FM Area

 Europe/USA1/USA2/Japan/Russia

 RDS

 On/Off

 Preset Stations

 30(FM 3*6, AM 2*6)

USB

 Position

 On the Back, USB or 3G Modem Port optional

 Capacity

 32GB

 Play MP5 Videos

 Yes, can play RMVB Videos up to 1080P

 Touch Music Title to play directly

 Yes

SD

 Position

 On the front panel, Media or GPS Card Slot optional

 Capacity

 32GB micro SD/TF Card

 Play MP5 Videos

 Yes, can play RMVB Videos up to 1080P

 Touch Music Title to play directly

 Yes

Car DVR

 Built-in Car Recorder

 Yes, just connect a USB Camera to use this function

 Support HD CCD Camera

 Yes

 Play recorded Video directly

 Yes

 Show Recorded Video list

 Yes, show the time longitude, latitude and speed

 Storing Position

 GPS Card

DTV-IN

 Built-in TV Tuner

 No

 External Port for TV Box

 Yes, Support Analog TV/DVB-T/ATSC/ISDB Box

 Power Supply to TV Box directly

 Yes, you can connect our TV Box to achieve this function

 Touch Control the TV Box on unit

 Yes, you can connect our TV Box to achieve this function

Additional

 Textbook

 Could change font, font color, background color, bookmark, reading E-book
 while listening music

 Photo Viewer

 Support JPS, BMP, PNG, GIF etc. format. play by revolve, Powerpoint
 Support 4096*4096 Pixels

 Wallpapers

 8 live wallpapers, 21 standard wallpapers, support DIY wallpaper from Gallery

 APK Installer

 Support Android Package installer

 Support Torque Pro(OBD2&Car)

 Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function

 Support Mirror Link function

 Yes, AirPin(PRO) for iphone and Easy-Connect for Android phone

 Music /Radio Player on main menu

 Yes, display a real player on main menu and can be controlled

 Built-in Operation Guide

 Yes

Setup

 WiFi/GPS/Steering Wheel Control

 Yes

 Languages and Input

 60 Languages and choose input method

 Storage/Security/Backup and Reset

 Yes

 Add Account and Accessibility

 Yes

 Date and Time

 Setting Date&Time by yourself or choose GPS automatic update time

 Driving safety/Screenshot setting

 Yes

 Display

 Brightness/Wallpaper/Wireless display

 Sound

 Key Tone & Volume

 Amplifier

 Pop/Jazz/Class/Flat/Rock/Voice/Custom

 Apps

 Running Apps display/force stop/uninstall

 Factory Settings

 Code 126, choose Radio Band and 85 Open-Unit-Logos

 About Device

 Display Parameter Info.

Input

 AUX Video In

 One

 Rear-View Camera Video In

 One

 External Microphone In

 One

 AUX Audio In

 R/L

 DTV Box In

 One

 Car DVR In

 One

 Radio Antenna In

 One

 GPS Antenna In

 One

Output

 Video Out

 Two

 Audio Out

 FR/FL/RR/RL

 Surround Stereo Out

 4 x50w

 Subwoofer Out

 One

Accessories

 Special Canbus Decoder Box

 One

 Power Cable with special Connector

 One

 Radio Antenna Adapter Cable

 One

 USB OTG Cable

 One

 RCA Cable

 One

 GPS Antenna

 One

 8GB Micro SD Card

 One
