2016 Hot Sale Automatic Shrink Sleeve Labeling Machine With Steam Shrink Tunnel and Generator

Automatic shrink sleeve labeling machine, with steam shrink tunnel and generator ,PVC,PET lable machine

1) Features;

a. Various bottle type;round, square and so on.

b. High precious location;save cost and correct.

c. Suitable for adjustment inside film range from 3′to 10′.

d. Man-machine conversation liquid crystal screen;easy operation
e. Magic Eye control feeding material, automatically.

f. PLC control system

g. High- speed sleeve film.(Temperature; from 100 to 600°C suitable for various film material

h. Screw transportation located system;Location for various shape bottles.

i. No need tool adjustment

1 Synchronized transmission, any change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than six hours, its maintenance is easy and
maintain is simple, so it doesn’t influence production.

2 Unit cutter head plane design in China which apply to the container of 30mm—130mm.you never need to change
or debug it. It also has unique light touch human-machine screen, that means,auto search original location as well as safety and convenience which is aheadof other congener products.

3 Single shrinking label feed plane ,reasonably height which is convenient to fix the label; micro-computer auto figure which avoid enactment and adjustment .you only need to press it lightly ,the label will detect and locate automatially.The change of label is quick and convinent,besides,the cut place is absolutely exact .

4 Label feeding equipment;driving synchronized tensility control the supply of label ,the supply ability is 90meters per minite,volume
label supply plane is 500mm,the internal diameter of paper tube will be 4’ ,8’,10’ .the configuration of label feeding is
stable tensility which enable the exact length of label and the stable ,quick supply of label.

5 The center pillar applies step by step shoot label structure and the speed is 150B per minute.

6 The newly designed cutter head use step by step motor driving which speed is high, action is exact, the cut is in order and the shrinking is beautiful. This design cooperates with the label synchronized location structure enable the precision of cut location within 1mm.

7 Many emergency stop buttons enable emergency stop at the proper position along the production which guarantee the safe production.

Main technical parameters of the equipment:

Voltage;

1 Host machine; AC220V, 50/60HZ, 1.5-2KW, single-phase

2. Production speed;9000 b/h

The standard length of label is 100mm
and the speed can be adjusted accord to customer’s requirements. The speed will be faster if the label is shorter.

4. Diameter of bottle body; 28mm-125mm

5. Length of label;30mm-250mm

6. Thickness of label;0.035mm-013mm

7. Material of label;PVC, PET, OPS

8. Size of equipment;

Size of the label sleeving
host machine;L2000MM*W850MM*H2000MM

Shrink tunnel

Steam generator

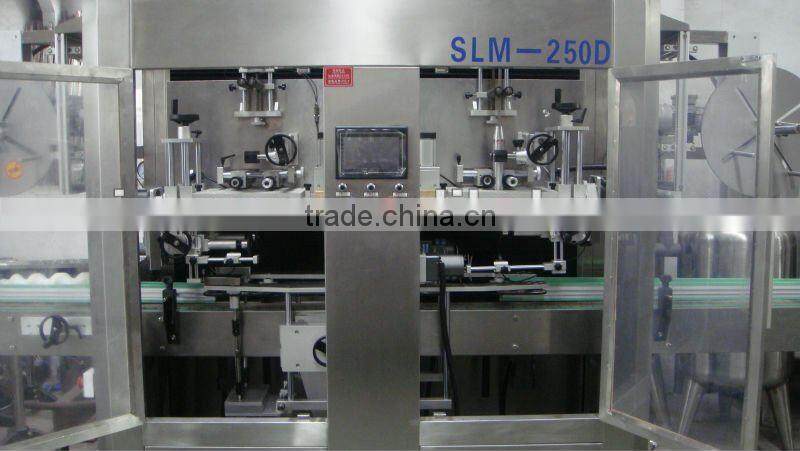

Double heads

Any question about this machine, please contact us! XinMao staff are glad to be at your service!
