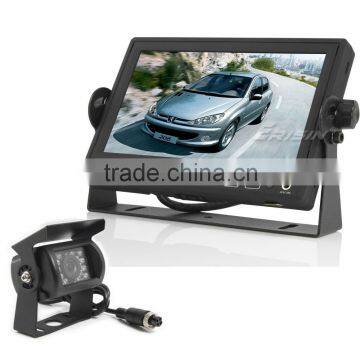

Erisin ES322 7" Car TFT LCD Monitor With 2 Video Audio Input
- Shenzhen
- Credit Card PayPal
You May Like
-
Erisin ES322 7" Car Truck Bus TFT LCD Color Monitor
-
Erisin ES322 7" TFT LCD Rear View Car Monitor With CCD Camera
-
Erisin ES322 7" DVR/Camera/DVB-T/DVD Car LCD Monitor
-
Erisin ES322 7 Inch TFT LCD Color Monitor With SD Card
-
Erisin ES322 7" Night Vision CCD Camera TFT LCD Color Monitor
-
Erisin ES322 7" TFT LCD Color Monitor DVR/Camera/DVB-T/DVD Player
Product Details
| Screen Size | Other, 7" | Screen Type | 16:9 | |
| Placement | Other, Car Inside | Combination | DVD Player, Other, DVD Player, DVR/Camera/DVB-T/DVD Player | |
| Certification | CE/FCC/RoHS | Car Make | Universal | |
| Place of Origin | Guangdong, China | Brand Name | Erisin | |
| Model Number | ES322 | Warranty | 1 Years |
Product Description

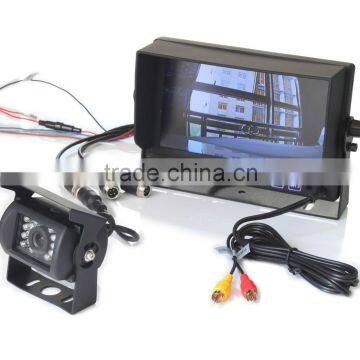

Erisin ES322 7" Car TFT LCD Monitor with 2 Video Audio Input
KEY FEATURES:

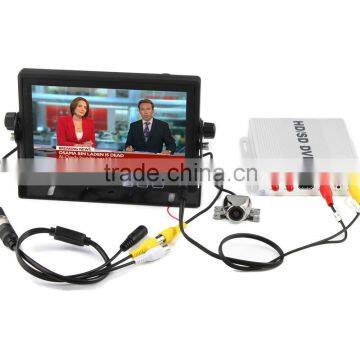

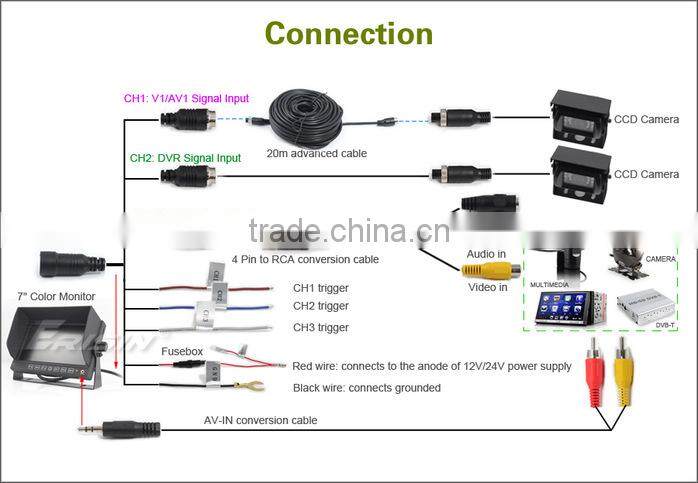

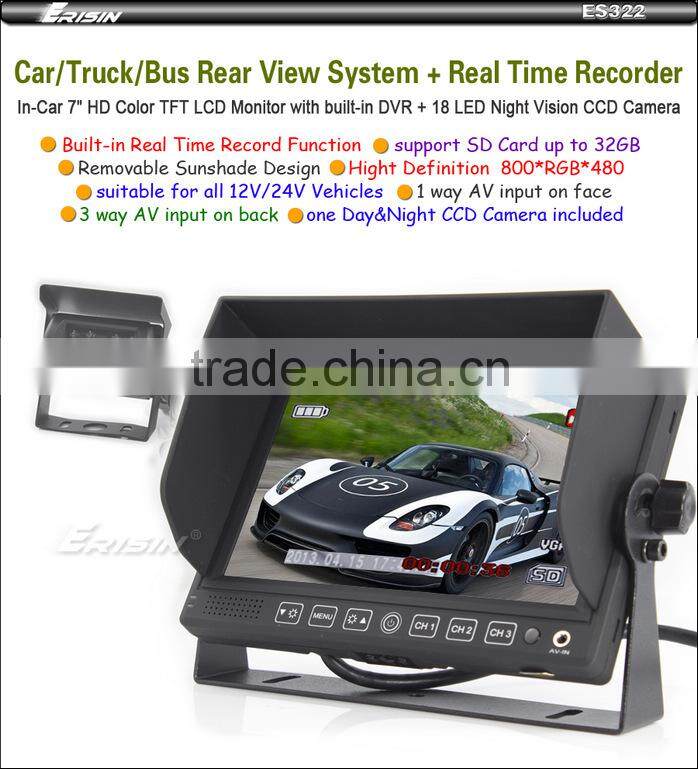

This is the newest All-in-One design with Monitor + Camera + Recorder. It has 2 AV inputs(CH1/AV-IN and CH3) and 1 Camera Input for built-in DVR(CH2), which means that you can hook up the monitor to a DVR/Camera/DVB-T/DVD Player etc. It used standard 4 PIN connectors to connect with the cameras which will provide power to each camera attached. U-bracket--easy installation, detachable sunshade design--keep the sun off the monitor, shockproof technology, simpleness connection, nonradiative, low consumption, 12V/24V in all Vehicles
- 7 Inch TFT LCD color monitor, 16:9/ 4:3 switch freely
- High Definition: 800*3(RGB)*480 pixels screen (2400Hx480V).

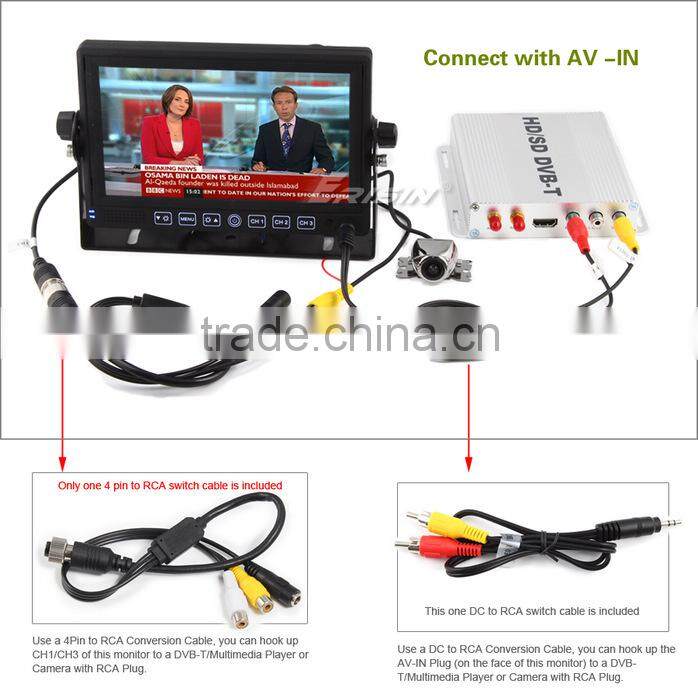

- AV-IN(DC-Plug) + DC-to-RCA-Conversion Cable (incl.)+ RCA AV Input such as DVR/Camera/DVB-T/DVD Player

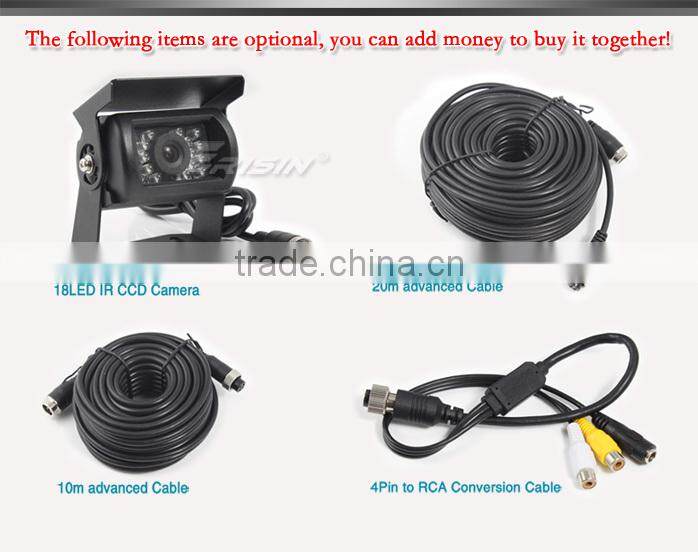

- CH1/CH3(4Pin) + 10m/20m Extension Cable (optional) + 4Pin CCD Camera (optional)
- CH1/CH3(4Pin) + 4Pin-to-RCA-Conversion Cable (incl.) + RCA AV Input such as DVR/Camera/DVB-T/DVD Player

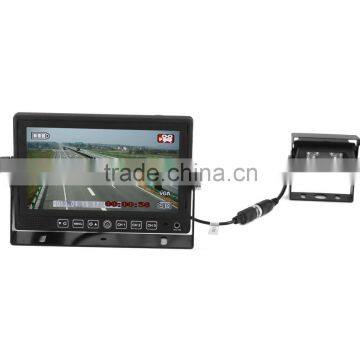

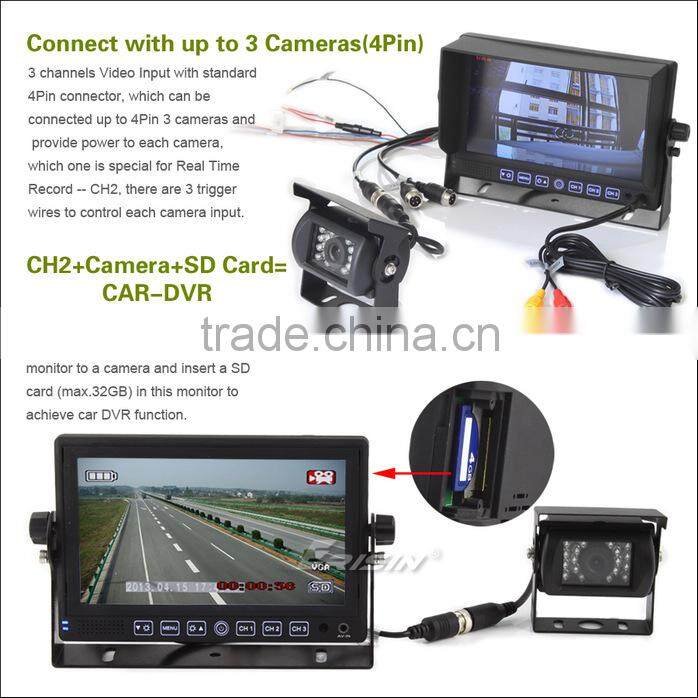

- CH2(4Pin) + 4Pin CCD Camera (incl.) + SD Card (up to 32GB) will become a Car-DVR (Real Time Recorder)
- CH1(4Pin) and AV-IN(DC-Plug) are using the same CH1, it will replace CH1(4Pin) Input when insert AV-IN Cable
- Languages, English/German/French/Spain/Portuguese/Italian/Chinese

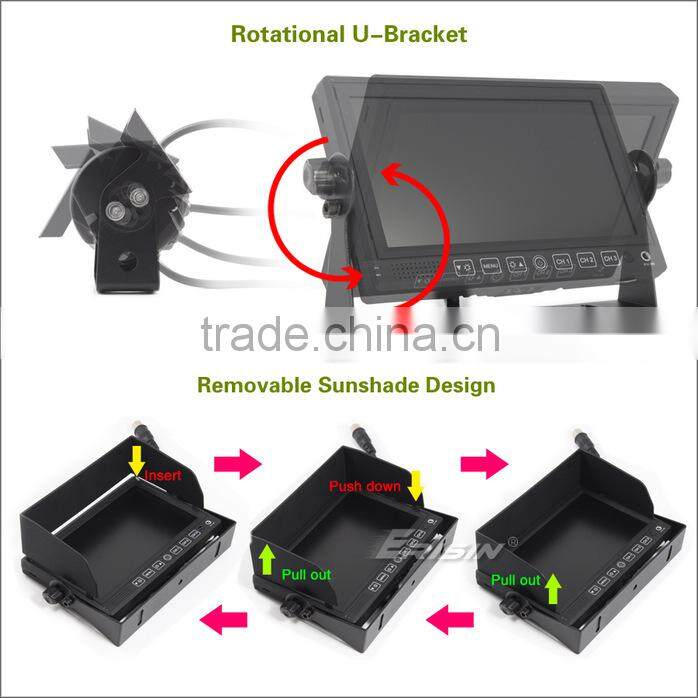

- Detachable sunshade design, this sunshade can keep the sun off the monitor
- It is mounted by a rotational U-bracket, which can be mounted on the dash, roof or anywhere that you find suitable
- Built in fuse box (No more messy box dangling on the dash)

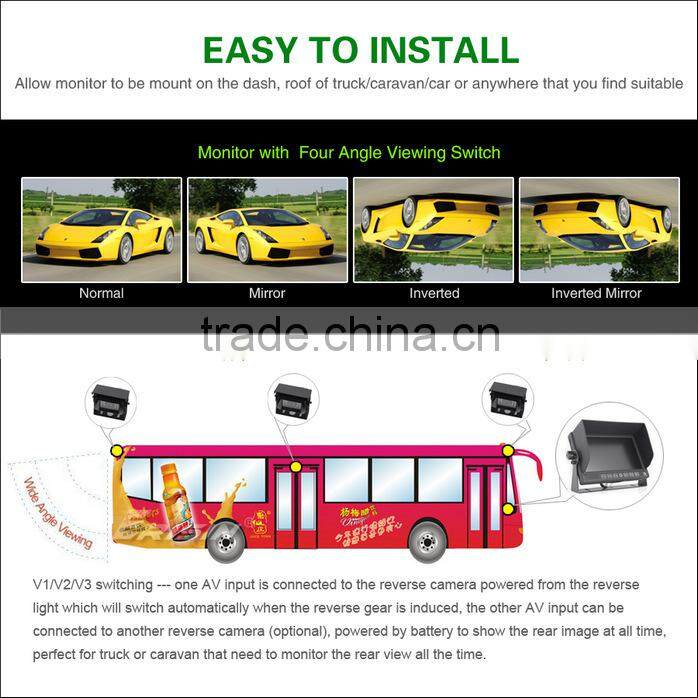

- Image can be adjusted for horizontal, vertical, mirror and normal viewing
- 12V/24V power source, This monitor reverse camera kit can be used with truck/caravan/bus/car
- One 18LED CCD Camera included, which has better's clarity, color contrasting and sharpness than CMOS camera
- 4 PIN Connector, which allowing the monitor to power up the camera attached, no need to connect another power cable

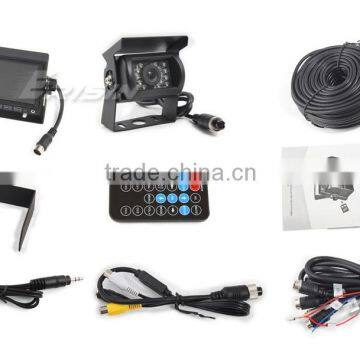

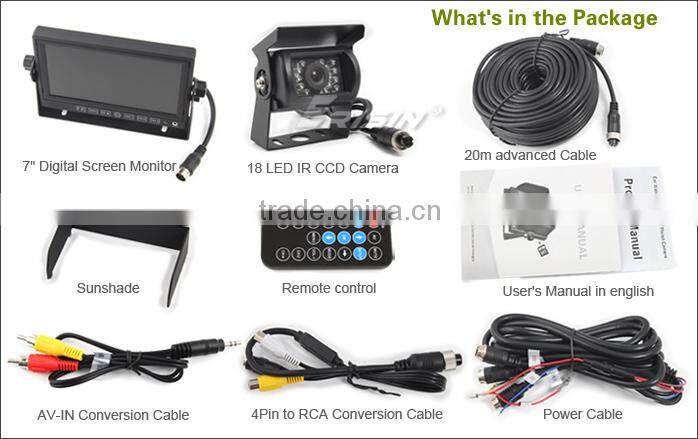

- Built in loud speaker, with AV-IN conversion cable and one 4 PIN to RCA conversion cable.
- With 3 trigger wires: AV Input(CH1)/Forward for Real Time Record(CH2)/Reversing forRear View Camera Input(CH3)
- Easy to install- You can DIY as long as you can locate your vehicle's 12V/24V power source
NOTE: This kit comes with only ONE monitor and ONE CCD camera, Please contact us for extra camera purchase
