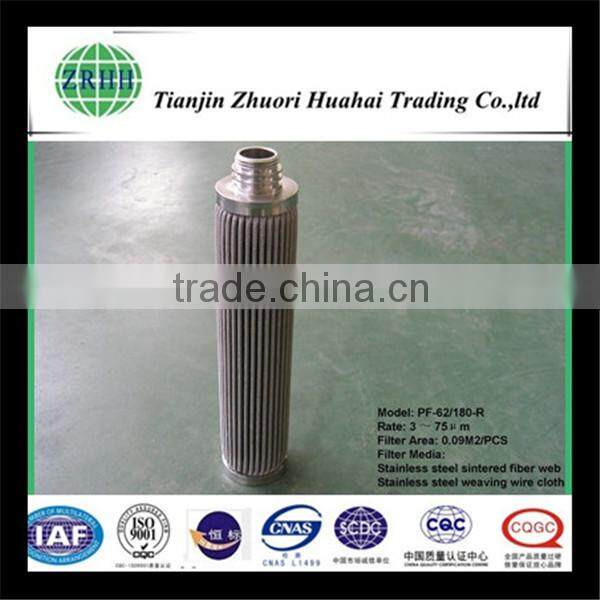

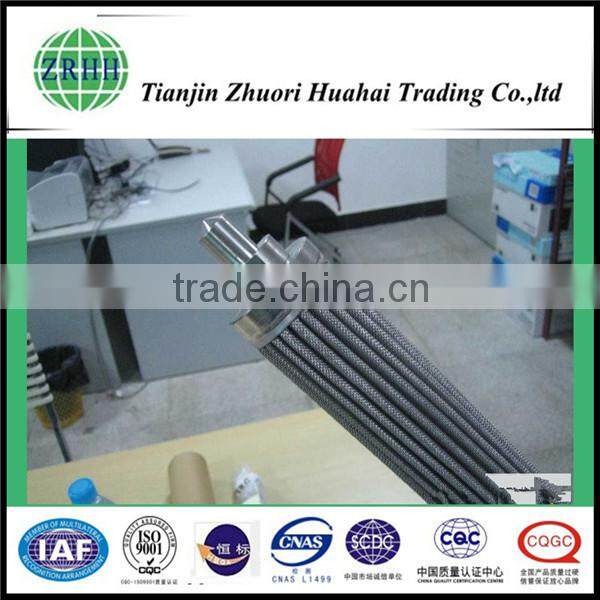

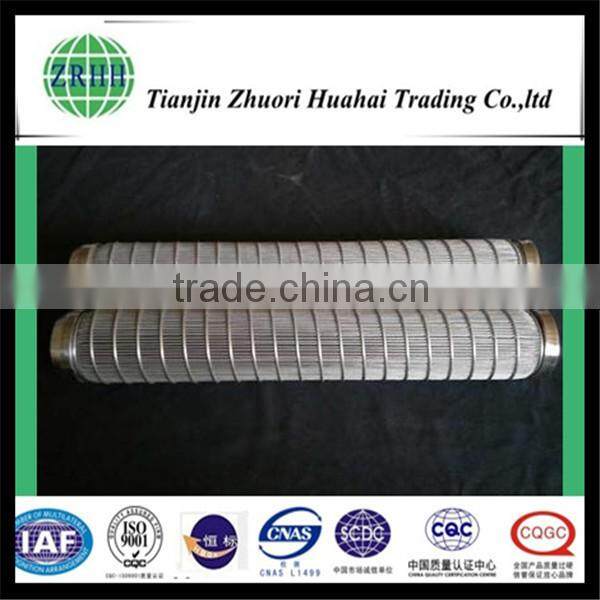

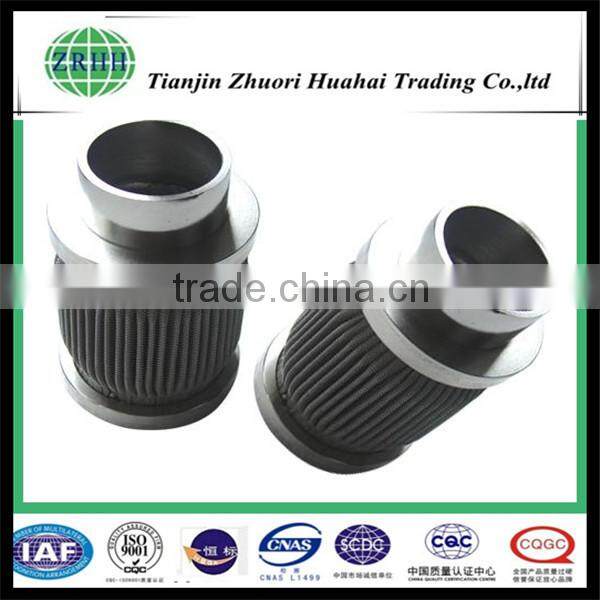

Fine Micron Filtering Pleated Stainless Steel Filter Cartridge

FOB Price

US$ 11 - 200 / Piece

10 Pieces(Min. Order)

Port Tianjin Port china
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Tianjin, China		Brand Name	zh
Model Number	according customer required

Product Description

melt filter

HOT SALE PRODUCTINFORMATION ,don't miss !!

good quanlity stainless steel folding melt filter used in petroleum, chemical industry, chemical fiber industry

product description : :

melt filter adopt import stainless steel fiber sintered felt made into all kinds of polyester

melt filter core,

1. Resistance to high pressure, high temperature and chemical corrosion resistance characteristics:

2. Good air permeability, large pollutant carrying capacity, long life,

3. Can be used repeatedly clean renewable,

4. 100% stainless steel material

Widely used in: oil, chemical, chemical fiber industry

Technical parameters :

Maximum working pressure P = 30 mpa
The highest working temperature T = 300 ℃
Viscosity: 260 pas
Pollutant carrying capacity: 16.9 ~ 41 mg/c Square meters
Thickness: 0.6 to 10 mm
Max Length: 1000 mm
Max width: 280 mm
Pipe: OD10-150MM*
Wall thickness of 2-5 mm

The table shows and sketch map :

Filtering Level	Filtration Precision um	Maximum Hole Diameter um	Permeability Coefficient 10-12m²	Permeability m3/h.m².kpa	Thickness mm	Compression Strength Mpa/cm²	Bubbling Pressure Kpa
S9	0.2	2.5		1	0.6-10	3.0
S8	0.5	4		3	0.6-10	3.0
S7	1.5	6		5	0.6-10	3.0
S6	2.5	10	0.09	10	0.6-10	3.0	9.16
S5	5	15	0.23	40	0.6-10	3.0	6.1
S5	8	20	0.91	80	0.6-10	3.0	4.6
S4	10	30	1.81	160	0.6-10	3.0	2.6
S3	28	60	3.82	350	0.6-10	3.0	1.8
S3	35	80	7.29	500	0.6-10	3.0	1.4
S2	40	100	9.43	700	0.6-10	3.0	1.1
S1	65	160	15.1	1000	0.6-10	3.0	0.66

....................

Packing & factory equipment
Packing : carton inside wooden case outside or according to your request

Transportation

. Why choose us?

1),Professional hydraulic filter manufacturer ,own factory ,has a professional team .

2),Small piece of sample can be free.

3),Competitive prices and timely deliver.

4),Quality guaranteed and thoughtful after-sales service .

5) , Accept any quality tests .

Trade & Market :

Over several years development , our products have reached the domestic and international advanced level in the same industry . our products are exported to Britain ,Australia,India ,Canada and other countries and regions ,the excellent quality has gotten high prise by the domestic and foreign customers ,if any new inquiry ,welcome here .

be widely used in :

Hydraulic filter elements are widely applied to various industries

Our factory can replace products :

Type 1: folding filter

Type 2: sintering filter

Type 3:  melt filter
Type 4:  wedge water filter
Type 5: pp pleated filter
Type 6:  pall  Hydraulic filter
Type 7: Hydac Hydraulic filter

Type 8: Leemin Hydraulic filter

Type 9: MP-filter Hydraulic filter

Type 10: Wire mesh deep processing

Type 11: Precision filter/

Type 12: Steam turbine hydraulic filter

Type13: Marine diesel engine hydraulic filter

Type 14: DAB desiccant air breather

Type 15: filter disc /filter cartridge

Type 16: Wedge Wire Screen Pipe filter
