Home > Products > Timming Belt > Timing Belt Pulley,timer Belt,timing Belt Cost,timing Belt,industrial Timing Belt

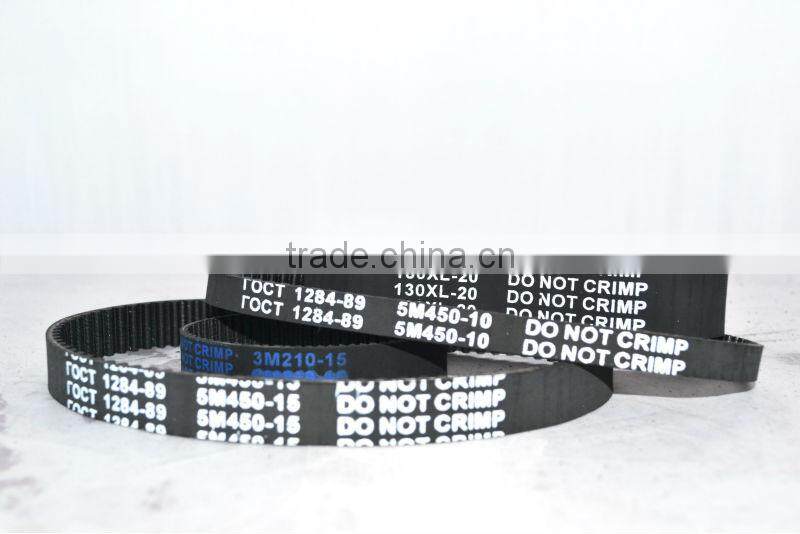

Timing Belt Pulley,timer Belt,timing Belt Cost,timing Belt,industrial Timing Belt
- NINGBO SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | FEILIZHOU | |
| Model Number | 154RPP30 |
Product Description
WE ARE MANUFACTORY!
The main products include V-belt ,timming belt,ribbed belt,raw edge cogged v-belt,variable speed belt,etc which are used in the filed of automotive,truck,motocycle and industry agriculture,household appliance.
Welcome to contact us,we hope to bulid good cooperation with you.
Features of Rubber Timing Belt
- It may solve the problems such as low transmission efficiency and lubrication oil required under the status of high speed when suing the chain,distance limit between the drive part and the slave drive part when using the gear.
- Glass fiber as tensile member.no elongation of rubber belt.
- Excellent heat-resistance,oil-proof,and wearing resistance
- Higher transmission efficiency can be guaranteed under the condition of large change of operation speed and temperature.
Structure of Rubber Timing Belt
No. | Name | Function | Material |
1 | Top Rubber | Protect the lining tensile member | CR HNBR |
2 | Tensile Member | Core material to pass the dynamic force | Glass Fiber |
3 | Teeth Rubber | Protect the tensile member and maintain the shape of the rubber | CR HNBR |
4 | Teeth Fabric | Maintain the shape of the adhesive | Elastic Fabric |
Industrial synchronous belt
Industrial synchronous belt drive is a new transmission mode that use meshing between teeth of belt to have impetus to work.They can be used in textile industry, light industry, chemical industry, industry electrical appliances, machinery for transferring power.
Material:
Chroprene Rubber(CR), Glass Fiber, Fabric or others (as customer's requirement)
Type:
T tooth industrial rubber synchronous belt
Arc tooth industrial rubber synchronous belt
| Type | Pitch Pb(mm) | Tooth height ht(mm) | Belt thickness hs(mm) | Angle β° |
HTD | 2M | 2 | 0.75 | 1.36 |
| 3M | 3 | 1.17 | 2.4 | |
| 5M | 5 | 2.06 | 3.8 | |
| 8M | 8 | 3.36 | 6.00 | |
| 14M | 14 | 6.02 | 10.00 | |
| 20M | 20 | 8.4 | 13.20 | |
STPD/STS | S2M | 2 | 0.76 | 1.36 |
| S3M | 3 | 1.14 | 2.20 | |
| S4.5M | 4.5 | 1.71 | 2.81 | |
| S5M | 5 | 1.91 | 3.4 | |
| S8M | 8 | 3.05 | 5.3 | |
| S14M | 14 | 5.3 | 10.2 | |
RPP/HPPD | 2M | 2 | 0.76 | 1.36 |
| 3M | 3 | 1.15 | 1.9 | |
| 5M | 5 | 1.95 | 3.5 | |
| 8M | 8 | 3.2 | 5.5 | |
| 14M | 14 | 6.00 | 10 |
Are you a trading company or manufacturer? | We are manufacturer.
|
What kinds of products we supply? | V-BELT,TIMING BELT,RIBBED BELT,TRANSMISSION BELT,WRAPPED BELT,RAW EDGE COGGED V BELT,ETC. |
Do you Accept OEM service? | YES! |
What's your Delivery Time? | 1)generally the samples will be sent immediately by the air express in 5-7 days if the goods are in stock. |
2) Normally within 30 days, please confirm with us before order! | |
How you pack products? | Plastic rope+Carton |
What's your available port of Shipment? | Normally, ningbo Other ports available but you should afford extra charges. |
Can you provide sample? | Yes, product samples are warmly welcomed. You only need to pay for the shipping cost. |
How to pay? | We accept T/T, Western Union |
Contact Us
- Taizhou Feilizhou Rubber-Belt Co., Ltd.
- Contact nameElena bao Chat Now
- Phone86-576-83118719
- AddressHucun village,gaojian town, Taizhou, Zhejiang
