Home > Products > Natural Gas Detector > CA-2100D Gas Controller

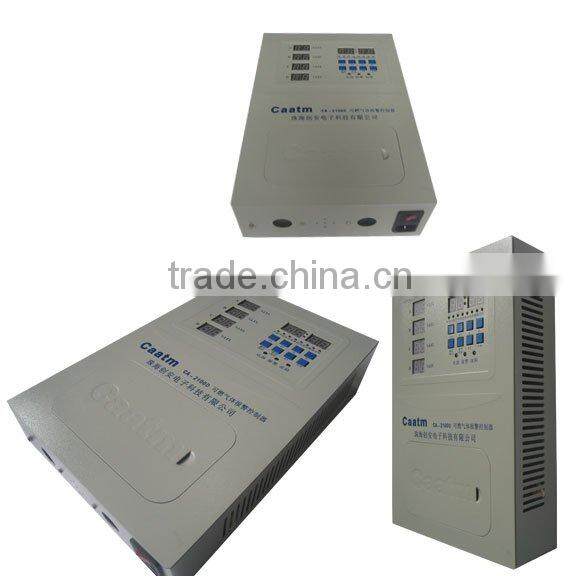

CA-2100D Gas Controller
- China Port
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Caatm | |
| Model Number | CA-2100D | Usage | Other, Alarm Controller |
Product Description
CA-2100D Gas Controller
Features:
1. Advanced MPU technology
2. Max. capacity of system: 4 channels
3. Work in patrol type
4. Four BUS signal outputs:
PositiveTerminal,NegativeTerminal,
Communication Line LA, Communication Line LB
5. Four-passage concentration real-time dislay
6. Bright LCD display
7. Real-time clock, works continuously even out of power
8. Accidental alarm report is in preference to device faulty indicator
9. Should use with our fixed probe (CA-217A-B)
10. RS485 Industrial field BUS with lightning protection
Specifications:
Working Method | Automatic Patrol | Output Voltage: | DC24V@1A (Supply Power to The Probe #CA-217A-B) |
Communication Interface: | RS485 | Working Voltage: | AC220V/50Hz |
Transmission Distance: | <1000 m | Alarming Function: | 2 Level Output |
Sample Rate: | <4 Channels/Second | Max. Capacity of System: | 4 Channels |
Display Method: | Four-passage Concentration Real-time Dislay | Display Error: | <+-5% |
Working Environment: | Tem-10%~+50% RH 30%-95% | Weight: | About 3kg
|
Controller Size: | 350mm(Length)*230mm(Width)*80(Thickness)mm | Performance Standards: | GB16808-1997 GB16808-2008 |
|
| Product Performance Standards: | GB16808-1997 GB16808-2008 |
OEM, ODM are welcome
