Home > Products > Industrial Use Gas Detector > CA-2100A Co Controller
CA-2100A Co Controller
- China Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Caatm | |
| Model Number | CA-2100A | Usage | Other, Gas Alarm Controller |
Product Description

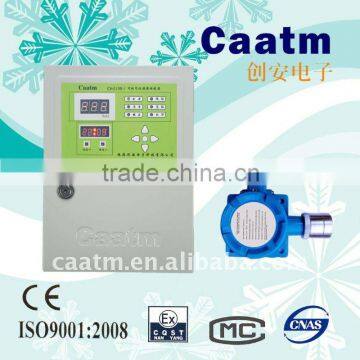

CA-2100A CO Controller
Features:
1. Advanced MPU technology
2. Max. capacity of system: 2 channels
3. Work in patrol type
4.Standard transmission signal of 4-20mA:
PositiveTerminal,NegativeTerminal, Signal Line IO
5. Three digitals display gas concentration ; four digitals
display time.
6. Alarm Function: 2 level output; Low Limit Alarm:
10%-25%LEL (adjustable) ;
High Limit Alarm: 26%-99%LEL (adjustable)
7. Real-time clock, works continuously even out of power
8. Zero adjustable function
9. Should use with our fixed probe (CA-217A-D)
Specifications:
Working Method | Auto Patrol | Output Voltage: | DC24V@500mA (Supply Power to The Probe #CA-217A-B) |
Communication Interface: | 4-20mA Standard Signal | Working Voltage: | AC220V/50Hz |
Transmission Distance: | ≤ 1000 m | Alarming Function: | 2 Level Output |
Sample Rate: | <4 Channels/Second | Max. Capacity of System: | 2 Channels |
Display Method: | Digital Tube Display rotationally | Display Error: | <+-5% |
Working Environment: | Tem-10%~+50% RH 30%-95% | Display Function: | LCD Display |
Weight | About 2.5 Kg | Controller Size: | 290mm*210mm*85mm
|
Connection Thread : | 1/2G Inner Thread | Performance Standards:
| GB16808-1997/ GB16808-2008 |
OEM ODM are Welcome
