Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | WH | Model Number | WHC-DC | |
| Structure | Tube Heat Exchanger | Liquid Flow Rate | Optional | |
| Maximum Working Pressure | Tube side 4.2Mpa | Weight | Optional | |
| Dimension(L*W*H) | Optional | Power(W) | Optional | |
| Certification | Other, ISO9001:2008 | Warranty | 1 year |
1 set / wooden case
Product Description
|
Main Products
|
Customer Feedback
|
Water cooler heat exchanger
- Work Condition:
1)Refrigerant side(In the tube): R22,R134a,R407c,R410a etc.
2)Water side (Between the tube and PVC-U shell):Nature water,sea water,salt water or other corrosive solution.
Material:
1)Heat transfer Tube: Pure titanium tube.
2)Shell: PVC-U/PP/Titanium.
- Features:
1)Usually used for heating or cooling.
2)Pure titanium tube has super strong corrosion proof ability and high intensity.
3) The seamless titanium tube was tested by 4.5MPa pressure to make sure the tube is strong and not leakage .
4)The PVC-U shell was tested by 0.4Mpa water pressure to make sure the water system not leakage .
- Application:
Water cooler heat exchanger is widely used for mariculture ,Industrial chiller,laser chiller,plating industries, tank aluminum oxidation, Industrial refrigerator,industry, food & beverage manufacturing , salt manufacturing,metallurgy,pharmacy, ultrasonic and acid tank etc.
- Notice:
1) The data list is our suggested data, We can produce any capacity heat exchangers according customer requirement and design.
2) To guarantee constant inprovement of technology , the parameters shall be changed without further notice.

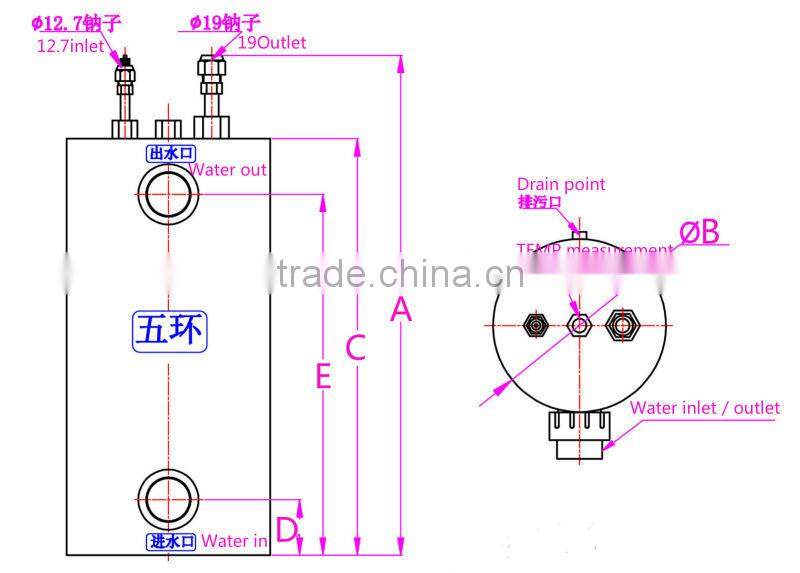

- Design:
- Specification:
| Model | Capacity | Type | Inlet/Outlet | External Dimension | ||||||
| In (inch) | Out (inch) | A | B | C | D | E | ||||
| WHC-2.0DC | 2.0HP | 4.6KW | Single Cooling | 1.5 | 1.5 | 520 | 250 | 400 | 80 | 320 |
| WHC-3.0DC | 3.0HP | 6.9KW | 1.5 | 1.5 | 570 | 250 | 450 | 80 | 370 | |
| WHC-4.0DC | 4.0HP | 9.3KW | 1.5 | 1.5 | 620 | 250 | 500 | 80 | 420 | |
| WHC-5.0DC | 5.0HP | 11.63KW | 1.5 | 1.5 | 720 | 250 | 600 | 80 | 520 | |
| WHC-6.0DC | 6.0HP | 13.9KW | 1.5 | 1.5 | 820 | 250 | 700 | 80 | 620 | |
| WHC-8.0EC | 8.0HP | 18.6KW | Double Cooling | 1.5 | 1.5 | 1010 | 250 | 900 | 80 | 820 |
| WHC-10.0EC | 10.0HP | 23.2KW | 2.0 | 2.0 | 1220 | 250 | 1100 | 90 | 1010 | |
| WHC-12.0SC | 12.0HP | 27.9KW | Triple Cooling | 2.0 | 2.0 | 920 | 315 | 800 | 90 | 710 |
| WHC-15.0SC | 15.0HP | 34.8KW | 2.0 | 2.0 | 1120 | 315 | 1000 | 90 | 910 | |
Power (HP) Cooling Capacity (KW) Unit:mm | ||||||||||
- Working Condition
Refrigerant side (in tube) | Water side (in the shell) | |
Design pressure (Mpa) | 4.5 | 0.4 |
TEMP . Range (°C) | / | - 5 to 45(PVC) , -10 to 75 (PP) |
Working Medium | R22/R407C/R134a/R410a etc . | Salt water, ground water , seawater ,etc |
Remarks | 1.Please drain off the water so as to avoid ice freezing to burst shells . 2.Please purge air thoroughly from water system , and cannot exceed the maximum pressure . 3.Keep water quality clean ,suggest to add fliters, and regular cleaning . | |
WH Factory is one of the largest Shell And Tube Heat Exchanger manufacturer in China ,who offer high quality heat exchanger with TA1 Titanium ,TA2 Titanium ,304 SS ,316 L ,copper and other materials, all products can be customized by request .
1). Professional manufacturer, ISO9001-2008
2). More than 6 years’ experiences of manufacturing.
3).Customized solutions and products
4).OEM/Small order accepted
5).Lead time 30 days
6).Tooling in house
7).High quality control
8).Competitive price
Our organisation is contributing huge patrons from the markets of China and other abroad countries such as Singapore, Middle-East, Africa, Malaysia, Europe, Denmark, America, Australia, UK, etc. Apart from these countries, we are also looking forward to entertain our more clients, by offering them our reliable products.
1:Before Service: All the process of Technical Production deportment and Strict Quality Control System. We also can provide the sample for your test quality.
2:Middle Service: Any question, pls feel free to tell us we will solve any doubt.
3:After Service: All the products problems, pls call us and E- mail us at any time, we will reply to you at the shortest time.
Payment Terms
Type of Payment: T/T100% payment in advanced, Paypal, Escrow, Western Union, L/C,etc.
Remark: If you have any question in payment, pls show us so that we will discuss.
Package:Standard export packing .
Shipping Terms:
1.For the sample order: we also use International Express freight: Such as: DHL, TNT, EMS, UPS and so on.
2.If your quantity is large, we will consider the Air or Sea Transport, all the detail terms we will discuss in the Contract.
