Oxygen production: 40Nm3/h

Oxygen purity: ≥99.6%

Liquid oxygen production: 20L

Liquid oxygen Purity: 99.7 ％O2

Nitrogen production: 40Nm3/h

Nitrogen purity: ≥99.99%

Liquid nitrogen production: 20L

Liquid nitrogen purity: ≤10 PPMO2

Operating pressure: 1.2Mpa

Start Time: ～10 hours

Total installed capacity: 76KW

Power Parameters: 380V/220V/50Hz (Customizable)

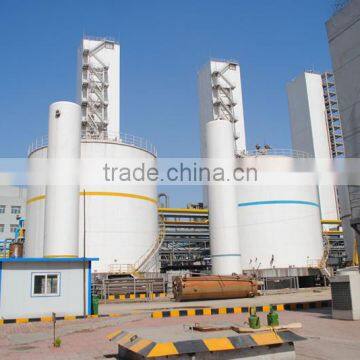

This plant adopts low pressure process, cryogenic technology to gain pure liquid oxygen, liquid nitrogen and liquid argon from air. That is to use the theory of turbo-expander chilling cycling to liquefy air. According to different boiling point of liquid oxygen and liquid nitrogen, gain oxygen of above 99.6% purity, and above 99.9% purity of nitrogen. According to your requirements, we can design only single product, or liquid &gaseous product.

The air separation plant consist of air compressor, pre-cooler, purifier, turbo-expander, cold box, liquid pump.

Advantages: the purity is high, also you can Simultaneously get the gas and liquid products.
