Cooling System 4.0HP Titanium Evaporator for Aquarium Chiller

Main Products

Customer Feedback

Evaporator for aquarium chiller

Work Condition:

1)Refrigerant side(In the tube): R22,R134a,R407c,R410a etc.
2)Water side (Between the tube and PVC-U shell):Nature water,sea water,salt water or other corrosive solution.
Material:
1)Heat transfer Tube: Pure titanium tube.
2)Shell: PVC-U.



Features:

1)Usually used for cooling.
2)Pure titanium tube has super strong corrosion proof ability and high intensity.
3) The seamless titanium tube was tested by 4.0MPa pressure precise Halogen Leak Detection to make sure the tube is strong and not leakage .
4)The PVC-U shell was tested by 0.2Mpa water pressure to make sure the water system not leakage .


Application:

Evaporator for aquarium chiller are widely used for mariculture , seafood refrigeration,seafood cooling&heating machine , desalination of sea water , food & beverage manufacturing , salt manufacturing,metallurgy,papermaking,ultrasonic,electrommunication and central heating etc.



Notice:

1) The data list is our suggested data, We can produce any capacity heat exchangers according customer requirement and design.
2) To guarantee constant inprovement of technology , the parameters shall be changed without further notice.

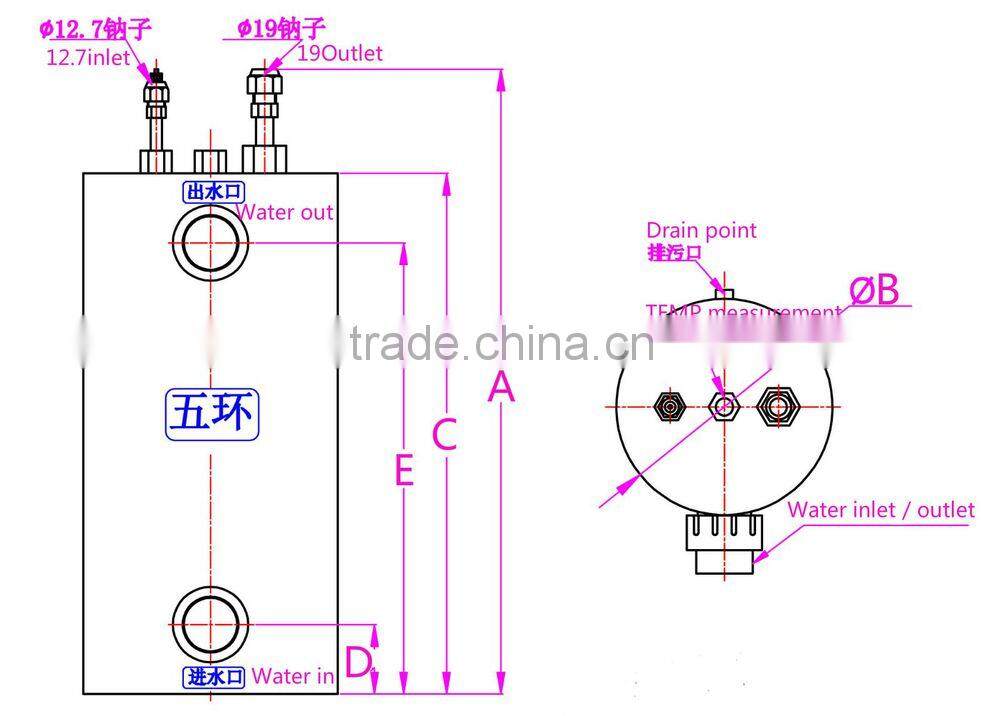

Specification:



Model	Specifications	Type	Inlet/outlet size		External Dimensions mm
			Inlet (inch)	Outlet (inch)	A	B	C	D	E
WHC-1.0DW	1.0HP	Single Cooling	1.0	1.0	450	160	350	60	290
WHC-1.5DW	1.5HP		1.0	1.0	500	200	400	60	340
WHC-2.0DW	2.0HP		1.0	1.0	550	200	450	60	390
WHC-3.0DW	3.0HP		1.5	1.5	690	200	570	80	510
WHC-4.0DW	4.0HP		1.5	1.5	850	200	730	80	660
WHC-5.0DW	5.0HP		1.5	1.5	920	200	800	80	730
WHC-6.0DW	6.0HP		1.5	1.5	970	200	850	80	770
WHC-7.0DW	7.0HP		1.5	1.5	1020	200	900	80	820

WH Factory is one of the largest Shell And Tube Heat Exchanger manufacturer in China ,who offer high quality heat exchanger with TA1 Titanium ,TA2 Titanium ,304 SS ,316 L ,copper and other materials, all products can be customized by request .

1). Professional manufacturer, ISO9001-2008

2). More than 6 years’ experiences of manufacturing.

3).Customized solutions and products

4).OEM/Small order accepted

5).Lead time 30 days

6).Tooling in house

7).High quality control

8).Competitive price

Our organisation is contributing huge patrons from the markets of China and other abroad countries such as Singapore, Middle-East, Africa, Malaysia, Europe, Denmark, America, Australia, UK, etc. Apart from these countries, we are also looking forward to entertain our more clients, by offering them our reliable products.

1:Before Service: All the process of Technical Production deportment and Strict Quality Control System. We also can provide the sample for your test quality.

2:Middle Service: Any question, pls feel free to tell us we will solve any doubt.

3:After Service: All the products problems, pls call us and E- mail us at any time, we will reply to you at the shortest time.

Payment Terms

Type of Payment: T/T100% payment in advanced, Paypal, Escrow, Western Union, L/C,etc.

Remark: If you have any question in payment, pls show us so that we will discuss.

Package:Standard export packing .

Shipping Terms:

1.For the sample order: we also use International Express freight: Such as: DHL, TNT, EMS, UPS and so on.

2.If your quantity is large, we will consider the Air or Sea Transport, all the detail terms we will discuss in the Contract.

Q1.Are you factory?

A.Yes,we are one of the largest corrosion resistant heat exchanger manufactory in China

Q2.May i get your product catalogue?

A.Sure, you are welcome to download the latest catalogue at our web /en,E-book , or contact us directly.

Q3.Are there any discount for the heat exchangers?

A.Yes. Bigger quantity will enjoy lower discount!

Q4.What is the MOQ?

A.We accept loose quantity order,mixed order,any trial orders.

Q5.What information needed if I want a quotation?

A .Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out ,Refrigrant Freon Type, Quantity, or any requirements in size.
