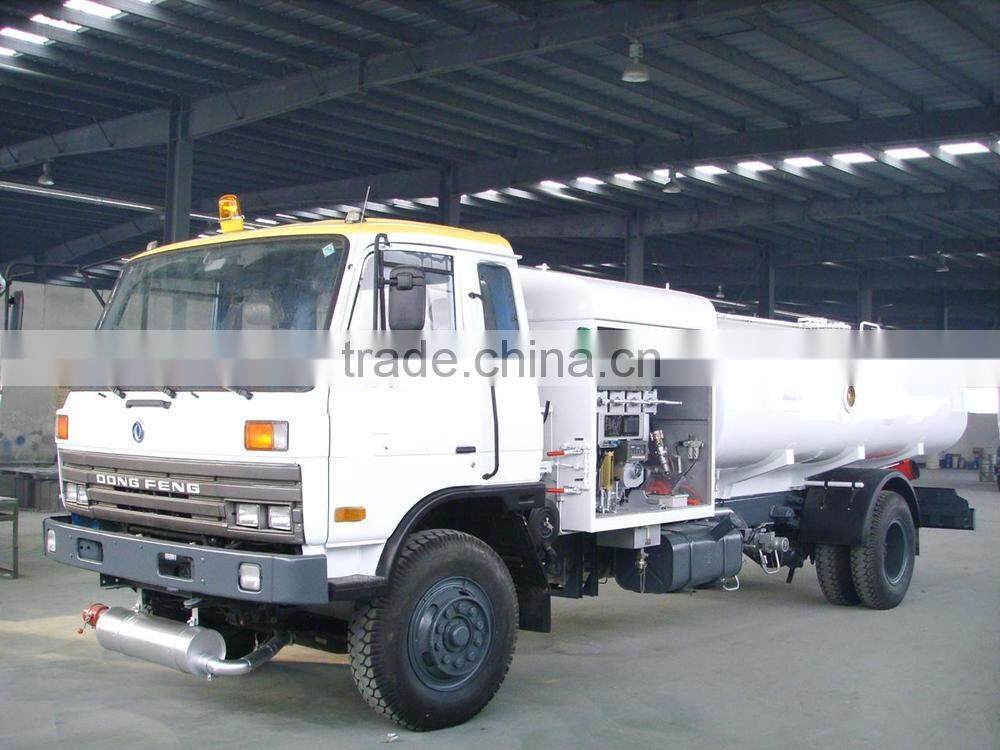

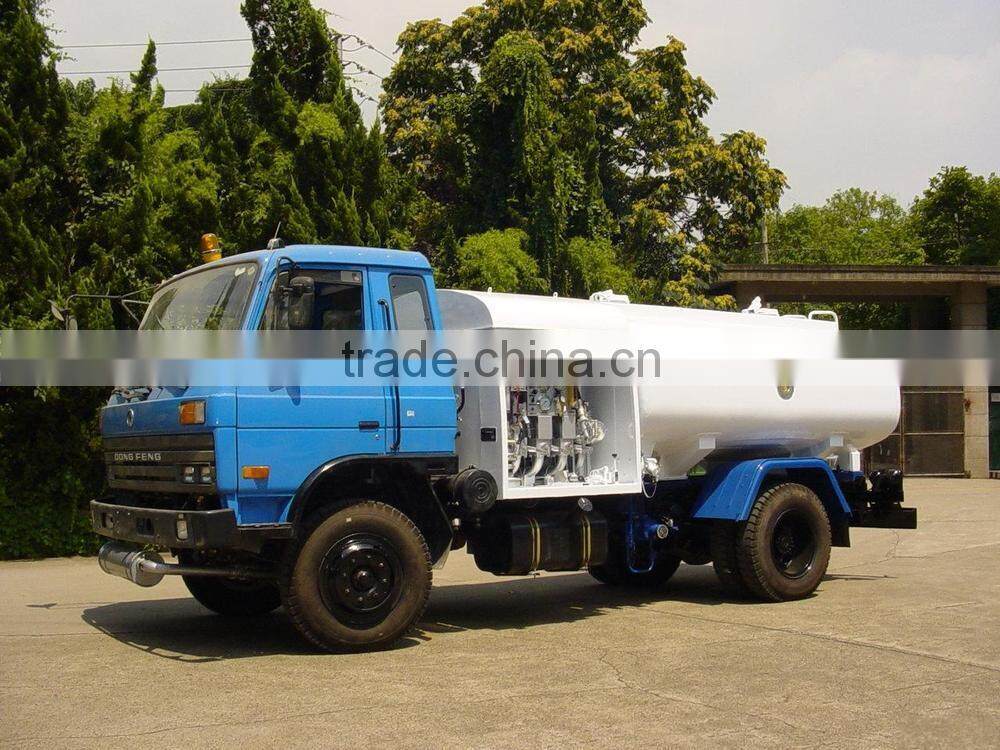

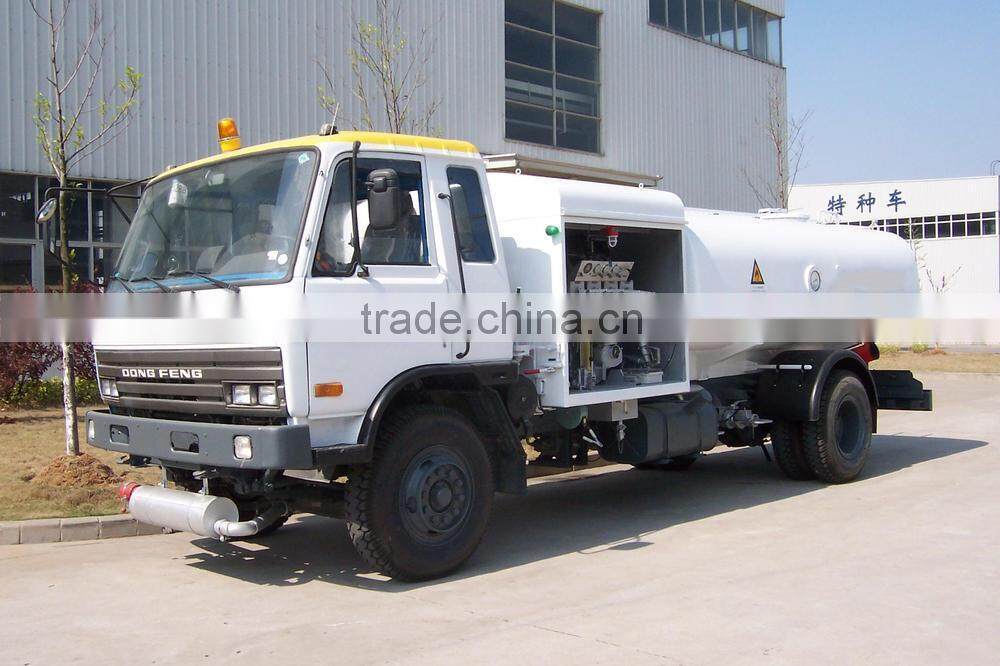

Dongfeng EQ5141G 4x2 Aircraft Oil Tank Truck Lwm

Dongfeng EQ5141G 4x1 aircraft oil tank truck

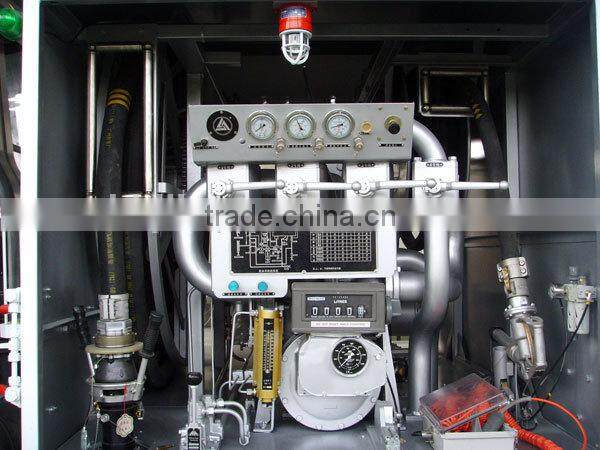

Valves in the control surfaces, easy manipulation

Gravity refueling reel, Φ38 grease guns, automatic spring winding

3 with a differential pressure gauge monitors filter use state

4 static grounding reel with spring winding

Pump oil system and a pressure relief valve, automatic pressure release tube, to prevent damage to components

The bottom of the oil loading and high level control

Set the float level gauge for easy observation tank fuel reservoir

Pipe flange connection with conductive copper wire, to prevent the buildup of static electricity

Product main parameters:

Dimensions (L x W x H, mm) 9380 × 2470 × 2760

Maximum total mass (KG) 18020

Rated contained mass (KG) 9600

Curb weight (KG) 8225

The Chassis Type Dongfeng 4 × 2 chassis

Wheelbase (mm) 5000

Minimum turning diameter (m) 20

Tank rated capacity (L) 12000

Tank material stainless steel

Meter Accuracy ± 0.2%

The pressure refueling largest flow (L / min) 800

The gravity refueling largest flow (L / min) 300

Pumping the maximum flow rate (L / min) 200

Maximum flow (L / min) 1500 oil loading

The pressure refueling hose length (m) 20

The gravity refueling hose length (m) 12

Filter separator filter fuel performance in line with API / IP 1581 5th requirements

The refueling pressure control end

Operating brake interlock

DedaMan control

Civil Aviation production license

High-level control

Remarks : import flowmeter or domestic flowmeter

More detail information please contact us.
