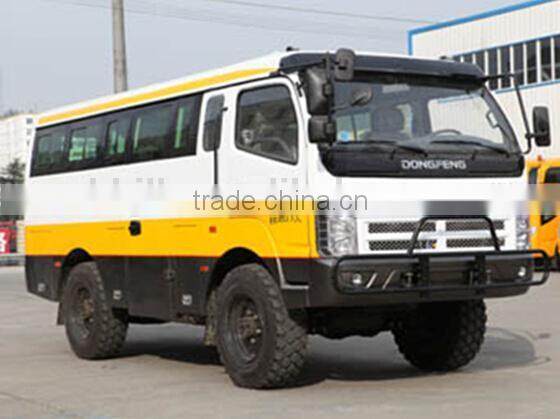

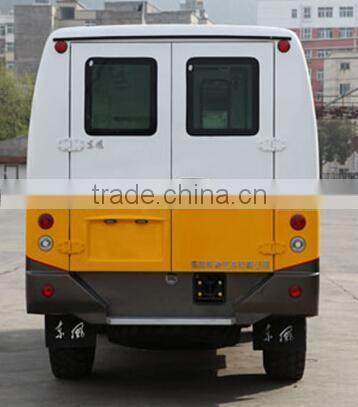

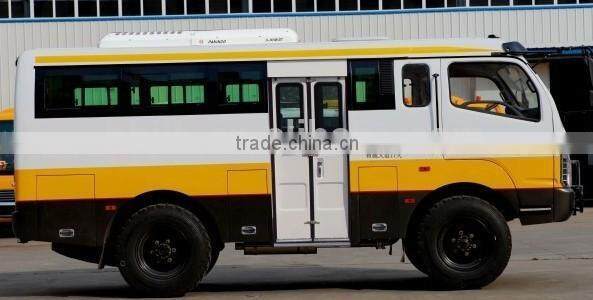

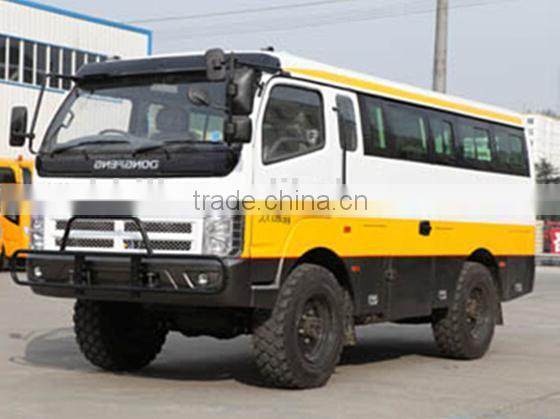

EQ6689PT Dongfeng 4X4 off Road Engineering Bus SL

Overall Dimensions

6700* 2240 * 2670

Length(mm)

6700

Width(mm)

2240

Height(mm)

2670,2950(With Outer Luggage rack)

Interior height(mm)

1680

Wheelbase(mm)

3650

Tread Front/Rear(mm)

1774/1774

Front/Rear Overhang(mm)

1290/1760

Min. Ground clearance

286

Approach/Departure Angle(^o)

35/23

Brake distance (v    fully loaded)

≤10

Fuel consumption (L/100km)

12

Max. Total Mass

6500

Front/Rear Axle (kg)

3000/3500

Max. Speed (km/h)

80

Max. Grade ability (%)

55

Min. turning circle diameter (m)

16

Fuel Tank Capacity (L)

60/135(main tank)

Engine

Arrangement of Engine

 Four cylinder in line

Model

EQB140-30   140hs Dongfeng Cummins diesel engine

Liters (cc)

120

Position

Front

Displacement (L)

3.92

Bore X stroke (mm)

/102×120

Compression Ratio

17.3:1

Max. Output (kw/rpm)

92/2800

Max. Torque (N.m/rpm)

410/1400-1600

Type of Fuel

Diesel

Chassis

Model

EQ6689KS

VIN

LGKY9CCG

Clutch

Single,dry,diaphragm spring clutch  330

Gearbox

Dongfeng brand

Technology and model

Mechenical Manual,Five forward Gear with one Backward Gear;Model: 17S26B-0030

nr. of speeds

1:6.30,2:3.71,3:2.11,4:1.32,5:1,R:6.6

Rear axle

Single Class Speed Reduction;Welding Chaissis Casing;EQ153;Load Mass:11 Tons

Front axle

I-shape beam Frame

Frame

Dongfeng frame: 6-00010/41T

Suspension system

Strengthen spring 9/11

Steering system

Chinese power steering gear

Braking system

Front&Rear drum,dual-circult service brakding system

Tyre

11R18

Electric system

24V minus earth

Starter

24V 4.5KW

Battery/Alternator

12V-2/28V 70A

Body

Body structure

 Standard of dongfeng

Type of floor

plat-floor PVC floor

Inner decorating

Standard

Door and door pump

 general door ,Pump type:FR803

Windows

Standard

Emergence exit

3

Nr.Seats (standard/optional)

19

Air-conditioning system

 Optional(Dongfeng Paninco brand)

Heating system

Heater by hot water

Audio and Visual system

Optional

Services facilities

Not

Others

Optional

Electronic station display

Standard

Counting passenNger system(entry /exit

Not

Engine intercooling system

Turbocharged and Aftercooled

Running recorder

 Made in China

Coin box with protection

Not

Metal plaint

Standard

Soft dashboard

Standard

Luggage compartment

 Standard

Fire extinguisher

Standard

VDO sensor VDO

Standard

AC system AC

option
