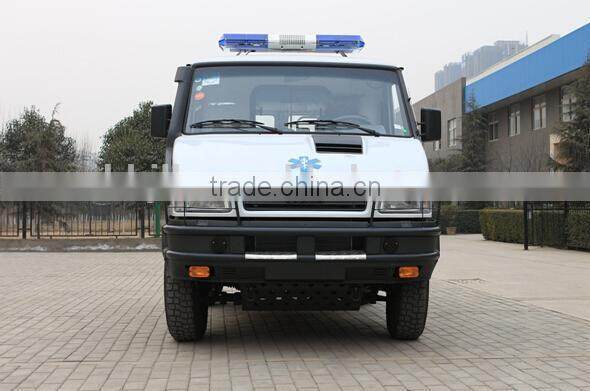

NJ2044XJHG IVECO 4WD LHD Ambulance Diesel Clx

NJ2044XJHG IVECO 4WD LHD Ambulance

Standard Configurations

1)        NJ2044XJHG IVECO 4WD vehicle: 1

2)        Independent A/C in cab room and patient compartment: 1set

3)        Blue alarm lamp and siren: 1set

4)        Transfusion support: 1set

5)        Medicine and instrument cabinet in patient compartment: 1set

6)        Oxygen bottle: 10L, 2pcs

7)        Oxygen terminal: 1set

8)        Electric Ventilation fan system:1set

9)        Push-lift stretcher:1set

10)    Folding stretcher: 1set

11)    Bench bed:1set for 3 persons

12)    Partition wall with observation window:1 set

13)    Illumination light in patient room:1set

14)    Folding chair:1set

15)    Vice driver seat:1set

16)    Garbage bin: 1pc

17)    Inverted power supply: 1set

18)    Medical equipment cabinet:1set

19)    Non-contact interphone: 1 set

Technical Parameters of chassis and engine:

1)        Model of vehicle: NJ2044XJHG, equipped with air conditioner and radio

2)        Chassis model: NJ2044GYCCP

3)        Overall dimensions (mm): 4855×2080×2435 (2635, including warning light)

4)        Patient's compartment dimensions (mm): 2465×1820×1500

5)        Complete vehicle curb mass: 3000kg

6)        GVW: 4450kg

7)        Wheelbase (mm): 2800

8)        Wheel tread (mm front/rear): 1670/1670

9)        Min. ground clearance (mm)(front/back): 235

10)    Min. turning radius (m): 6

11)    Approach/departure angel: 35/32.5

12)    Max. gradeability (%): 60

13)    Fording depth (mm): 700

14)    Trench crossing (mm): 550

15)    Maximum speed(km/h): 105

16)    Fuel tank capacity (L):75

17)    Fuel: diesel

18)    Fuel system: turbocharging

19)    Wheel rim: hub type

20)    Fuel consumption (L/100km) (direct gear,50km/h uniform speed): ≤13

21)    Emission standard: Euro IV

22)    Tire: 255/85R16LT 8PR

23)    Brake system: front disc / rear drum

24)    Engine Model: SOFIM8142.43S4

25)    Engine type: in-line, 4 cylinders, 4 strokes,water-cooled, overhear camshaft, direct Injection turbocharged inter-cooled diesel engine

26)    Displacement (ml.): 2798

27)    Engine power (kw/rpm): 95kw/3600rpm

28)    Max. torque(Nm/rpm): 269N.m/1900rpm

29)    Suspension (front/rear):Torsion bar independent suspension / steel spring

30)    Front overhang / rear overhang (mm): 1000/1055

31)    Gearbox: manual 5 speed, 5 forward gear, 1 reverse gear

Company special-purpose vehicle scope as following:

  Nude cargo,container, the vehicle surface spray anti-rust wax ,we will provide the best break bulk carriers and Ro-Ro shipping scheme according to your actual situation.

1. Factory Supply:

A). the biggest and famous vehicle manufacturer in china,

B). more than 300 kinds of special truck for your selecting.

2. OEM Ability: can be made according to your requirements, the material, the size, the color and the logo can be optional.

3. Good Quality:

A). has solid technology, advanced equipments; reliable quality and flexible modes of operation also have strict quality control system,

B). ISO9001-2008 standard and the 3C (China Compulsory Certification),

C). China top brand with good reputation at home and abroad.

4. Good Service: 24-hour hotline and email.offer quickly no more than 5 minutes.

5. Fast Delivery: 10-35 days after payment, safe and quick delivery depends on your order quantity.

1. Price term: FOB Shanghai in China.CIF for destination port.

2. Payment: T/T 30% deposit after order confirmation, 70% balance cash before delivery.

3. Delivery time: 10-35 working days after payment is received.

4. Standard Steering:Left-hand drive, if you need Right-hand drive type, please inform us in advance, we can make the special order for you.

Once you have any inquiry about Dongfeng products in the following days,hope you could feel free to contact with us,wich is much appreciated.also welcome you and your team to China to visit our company,seeing is believing !

How to get to our city ? the flight line as following:

Flight line: you can fly from Shanghai/Beijing/Guangzhou or Shenzhen to Xiangyang airport of Hubei province,we can pick you up at the airport.
