Mini Mobile Thermal Printer From HANYUE (over 15 Years Experience)

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1).paper width: 58mm
2)interface:RS232, bluetooth wifi
3)support receipts and barcode label
4)support Android mobile

1. NFC NAG203 RFID smart card from HANYUE

1).paper width: 58mm
2)interface:RS232, bluetooth wifi
3)support receipts and barcode label

2.Specification

Model	MPT-II/IR		MPT-II/BL	MPT-II/WIFI
Printing method	Direct thermo sensitive method
Paper width	58mm
Valid printing width	48mm
Weight ( g)	197g(excluding paper roll)
Diameter of paper roller	£40mm
Dot structure	384 dots/line
Input characters	ASCII CH(16* 8, 2412),GBK ( 1616, 24*24 )
Printing speed	50~80mm/s
Lifetime	50km(printing density under 12.5%)/100 million pulses
Printing content	English, figure, symbol, Chinese, graph, curve, icon pre-stored, barcode (CODE39,EAN13,EAN8, CODABAR,CODE128,CODE93,ITF)
Dot pitch (resolution)	203DPI/8 dots/mm
Communication interface	IRDA/VIR/RS232	Bluetooth V1.1 CLASS /RS232			WIFI/RS232
Power	1500mAh 7.4V , rechargeable li-ion battery
Charging	Standby charging / AC adapter
Abnormal test	paper end/power capacity/ cover switch
Black mark test	Supported
Paper feeding	Easy paper loading
Command sets	Compatible with ESC/POS command sets
Paper cutter method	By hands
Operation environment	Temperature -10°C~50°C ; Humidity 20%~85%
Charging environment	Temperature 5°C~40°C; Humidity 20%~85%
Storage environment	Temperature -20°C~70°C ; Humidity 5%~95%
Standard accessories	Long-term preservable paper, AC adapter, li-ion battery
Optional accessories	Serial interface cable / leather coat

3. Contact Detail:

H-RFID Information Technology Co., Ltd

Address	Yinhe Building, 2008 Xinluo str. High-tech District, Jinan 250101 Shandong Province, China
Mob	+8618615266026 (Molly Bai)
Office	0531-88118020-839
Skype	h-rfidtag07

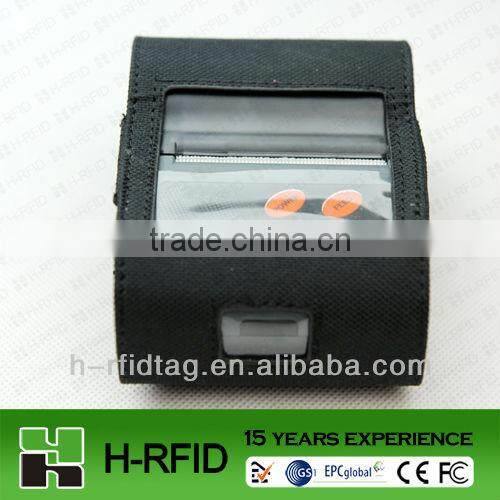

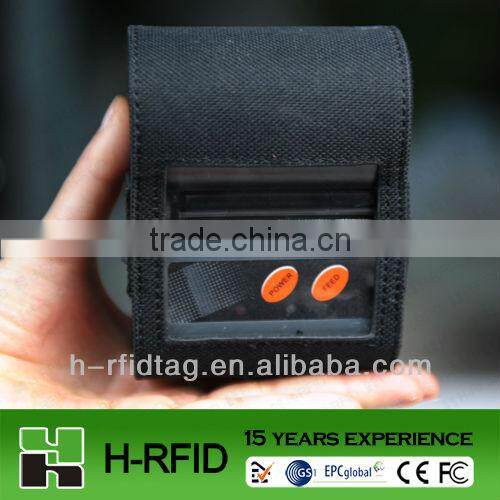

4. Picture for reference:
