Home > Products > Adhesive Tape, Film > Fiberglass Binding Tape

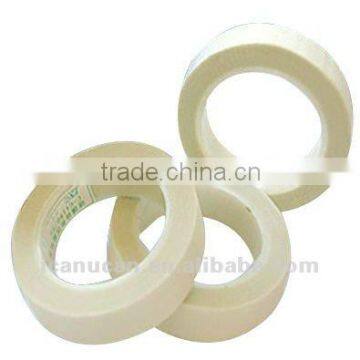

Fiberglass Binding Tape
- Qingdao Port
You May Like
Product Details
| Material | Polyester | Use | Masking | |
| Adhesive Side | Single Sided | Adhesive | Silicone | |
| Adhesive Type | Hot Melt, Pressure Sensitive | Feature | Heat-Resistant | |
| Design Printing | No Printing | Place of Origin | Shandong, China | |
| Brand Name | Luway |
Product Description
Specifications
made from Glass Fabric Tape coated with pressure sensitive siliconeheat-resistant

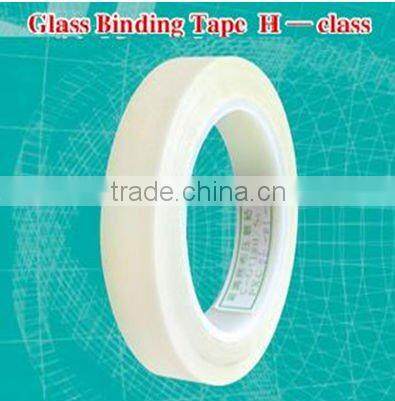

Fiberglass binding tape (H-Class), is made from Glass Fabric Tape coated with pressure sensitive silicone adhesion on
single side. It is heat-resistant.
Applications: electrical insulation banding, electric motor binding, cable junction binding, dry type power transformer binding and other electrical machinery bindings.
Properties | Unit | Standard Value | Test Value | Standard Value | |
Thickness | mm | 0.22 ± 0.010 | 0.223 | 0.180± 0.010 | |
Glass Thickness | mm | 0.170 | 0.165 | 0.130 | |
Width | mm | 15.0 ± 1.0 | 15.02 |
6 — 500
| |
25. 0 ± 1.0 | 25.02 | ||||
25.4 ± 1.0 | 25.42 | ||||
Tensile strength | N/25mm Width | ≥ 660.0 Longitudinal direction | 750.6 Longitudinal direction | ≥ 540.0 Longitudinal direction | |
Elongation rate | % | ≥ 5 Longitudinal direction | 6.0 Longitudinal direction | ≥ 5 Longitudinal direction | |
Breakdown voltage | KV | ≥ 7.5 | 9.5 | ≥ 6 | |
Adhesion | Tape and Tape |
N/25mm | ≥ 5.0 | 14 | ≥ 5.0 |
Tape and copper | ≥ 4.0 | 15 | ≥ 4.0 | ||
Temperature index number | °C | ≥ 180 | |||
Additional: |
| Width ≤500 mm | Storage life: 12months (below40°C) | ||
Unit length | meter | 30m or according to customer requested | |||
