Home > Products > machine for sandwich board > PRESS MACHINE FOR FPR+PU SANDWICH PANEL

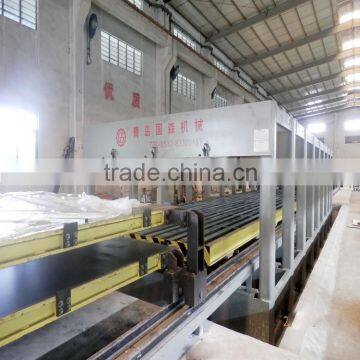

PRESS MACHINE FOR FPR+PU SANDWICH PANEL
- QINGDAO PORT
- T/T D/P D/A
You May Like
-
25000KN cold press machine for strand woven bamboo panel
-
2500T cold press machine for strand woven bamboo panel
-
StrandWoven Bamboo superior quality flooring machine
-
cold press machine for strand woven bamboo panel
-
Re-combined Bamboo hydraulic press
-
hydraulic press for Re-combined Bamboo (cool press)
Product Details
| Condition | New | Type | Hot Press Machine | |
| Place of Origin | Shandong, China | Brand Name | GUOSEN | |
| Model Number | BY320x1050/63(1+1) | Voltage | 380/220V | |
| Power(W) | 20.5kw | Dimension(L*W*H) | 25,000*3,400*2,500mm | |
| Weight | 95 ton | Certification | ISO9001:2000 | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
(1),dimension of working table (including moving working table and upper fixed working table) | 3,200*10,500mm |
(2),flatness of working table (including the surfaces that touch the products of upper fixed working table and moving working table ) | ≤0.5mm/m2 |
(3),flatness of All surface of working table |
|
the surfaces that touch the products of upper fixed working table and moving working table | ≤2mm |
The distance between the surfaces that touch the products of upper fixed working table and moving working table | ∠1.5mm |
The roughness of the surfaces that touch the products of upper fixed working table and moving working table | Ra∠6.3um |
(4),Height of moving working table | 700mm |
(5),Layers | One,and one direction |
(6),daylight(stop at any position) | 450mm |
(7),time for opening or closing | ≤60S |
(8),pressure of hydraulic system | 15MPa |
(9),total pressure | 630tons, 24pieces oil cylinders with Φ140. |
(10),Motor power of hydraulic system | 20.5KW |
(11),pressure of heating water | 0.2MPa |
(12),production technology temperature | A. room temp.~40±5℃ B. room temp.~70±5℃ |
(13),heating power | 120KW |
