ratio1 to 1 aluminium fusion forward and reverse 540 pto gearbox of agricultural machines Quality Choice
- Shanghai
- T/T L/C D/P D/A
You May Like
-
B1101 ratio1:1 cast iron housing forward and reverse agricultural machines right angle gear box Quality Choice
-
T311 B2001 forward and reverse ratio 1:1.93 tiller gearbox
-
B0882 ratio1:1 cast iron housing forward and reverse agricultural machines 1:1 ratio gearbox
-
B0881 ratio1:1,cast iron housing,forward and reverse, agricultural machines 90 degree gearbox Quality Choice
-
iron housing custom slasher mower gearbox
-
B84 heat treated custom rotary tiller gearbox
Product Details
Place of Origin | China | Brand Name | HM | |
Model Number | BA0902 | Gearing Arrangement | Bevel / Miter | |
Output Torque | 195 | Rated Power | 11kw | |
Input Speed | 540 | Output Speed | 540 |
Product Description

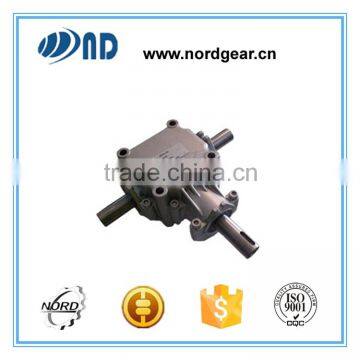

BA0902 ratio1:1 aluminium fusion forward and reverse agricultural machines aluminium fusion 540 pto gearbox
Item No. | BA0902 | |
Brand | HN | |
Item Name | Bevel Gearbox | |
Ratio | 1:1 | |
Horse Power | 15HP | |
Input Speed | 540RPM/1000RPM | |
N.M. | 195 | |
Application | Agriculture machine: Rotary tiller Post hole digger Water pump Tillage machinery Fertilizer spreader Snow blower |
USE | Ratio | INPUT (Z) | OUTPUT(X-Y) | ||||
R.M.P | Hp | KW | N•m TORQUE | N•m TORQUE | R.M.P | ||
Speed | 1:1.9 | 540 | 14 | 10 | 182 | 96 | 1026 |
1000 | 22 | 16 | 155 | 81 | 1900 | ||
1:1.35 | 540 | 16 | 12 | 208 | 154 | 729 | |
1000 | 25 | 18 | 176 | 130 | 1350 | ||
1:1 | 540 | 15 | 11 | 195 | 195 | 540 | |
1000 | 23 | 17 | 162 | 162 | 1000 | ||
Speed | 1.35:1 | 540 | 13 | 10 | 169 | 228 | 400 |
1000 | 20 | 15 | 141 | 190 | 741 | ||
1.9:1 | 540 | 9 | 7 | 117 | 222 | 284 | |
1000 | 14 | 10 | 98 | 187 | 526 | ||
2.78:1 | 540 | 5 | 4 | 65 | 181 | 194 | |
1000 | 8 | 6 | 56 | 156 | 360 | ||
3.3:1 | 540 | 3 | 2.2 | 39 | 129 | 164 | |
1000 | 4.5 | 3.3 | 31.5 | 104 | 303 | ||
LUBRICATING OIL: SAE.90EP | 0.20 L | WEIGHT: 5.0KG |
1. Customers offer general requirement of the product;
2. We recommend a suitable item on request;
3. Our designer will make a drawing according to your product;
4. After your confirmation of the drawings, inform us the color and types you need;
5. We will do quote once get the conformation of you.
6. Note: Customers can order all product samples we put or you can also have
your own idea, as we are custom-made product supplier, so different colors
and types are available.
MOQ | 50 pcs |
Package | Standard Export Packaging Cartons |
Delivery Terms | FOB,CIF |
Delivery Time | 30-45 days |
Payment Type | T/T,L/C |
Supply Ability | 10000 Pcs/Month |
Port | Shanghai/Ningbo |
