Home > Products > Wood Chipper > Self-Powered Wood Chipper
Self-Powered Wood Chipper
- 1000 Set / Sets per Month
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | XIAER | |
| Model Number | WCS |
Product Description

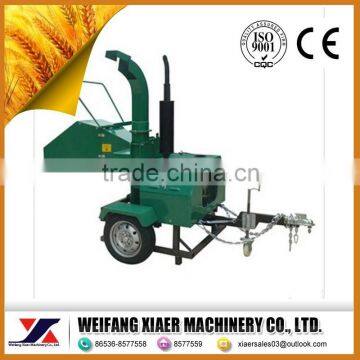

Self-Powered Wood Chipper
1. This machine with advanced design and structure, processing high quality wood chips.
CE certificate was passed in 2011.
2. It is consist of main machine, flywheel, knife blades, feeder, hydraulic pressure system, etc.
Diesel engine is main power, it can works in field where is no electric.
3. Knife roller with 2-6 knifes which can be adjusted up and down based on the thickness of wood
chips required.
Qualified chips is in size of 4mm, which comes down through the outlet
4. The machine is suitable for processing of wood log and other waste materials such as density
board, straw etc.
Model | FRD-DH50 | FRD-DH40 | FRD-DH30 | FRD-DH22 | FRD-DM18 |
Max. dia. of feeding | 8'' | ||||
Diesel engine model |
YD490 with CE Certificate (50hp, 4 cylinders) |
YD480 with CE Certificate (40hp, 4 cylinders) |
YD385 with CE Certificate (30hp, 3 cylinders) |
1115 (22hp, single cylinder)
|
1105 (18hp, single cylinder) |
Flywheel diameter | 600mm | ||||
Flywheel turning speed | 1025rpm | ||||
Feeding system | Hydraulic Feeding, Adjustable Speed , stop-reverse-forward function | Hydraulic Feeding, Adjustable Speed, stop-reverse-forward function |
Hydraulic Feeding, Adjustable Speed, stop-reverse-forward function |
Hydraulic Feeding, Adjustable Speed, stop-reverse-forward function |
Reduction Gearbox For Feeding (4mm/s) only forward function |
Number of blades | 2 blades recommended and 4 blades can be customized, but not be recommended for 600mm flywheel. | ||||
Finishing chips | thickness less than 4mm | ||||
Discharge Outlet adjustable angle | 360 | ||||
Tyre size | 155-65R13, tubeless tire | ||||
Working efficiency | 10~14m3/h | 8~11m3/h | 8~9m3/h | 7~8m3/h | 7~8m3/h |
Hydraulic oil tank | 26L | 26L | 26L | 16L | / |
Machine Weight | 735 | 630 | 610 | 585 | 570 |
Machine Profile | 3430x1750x1900mm | 3400x1700x1900mm | 3400x1700x1900mm | 3250x1650x1870mm | 3250x1650x1870mm |
Packing size | 1780×1500×1350mm | 1750×1450×1350mm | 1750×1450×1350mm | 1500×1400×1320mm | 1500×1400×1320mm |
Welcome to contact us !
