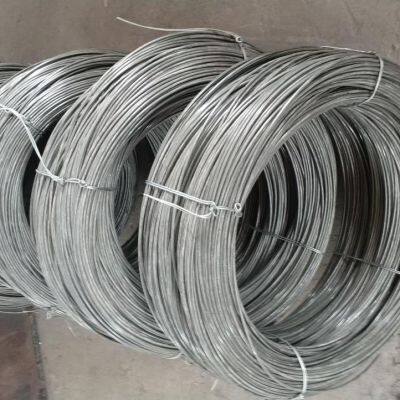

Barre de fil de fer pur tréfilé à froid de qualité DT4 avec une faible coercivité ≤96 A/m et une haute perméabilité pour l'instrumentation

Catégorie: Fer pur / Fer pur industriel / Fer pur électromagnétique

Lieu d'origine : Xingtai, Hebei, Chine

Marque / Fabricant: XTISCO (Xingtai Iron & Steel Co., Ltd.)

Niveau : DT4

Niveaux personnalisés disponibles : DT4C, DT4A, DT4E, YT0, YT01, YTnc1

Spécification (Diamètre) : ?1,0 mm à ?10 mm

Norme d'exécution : GB/T 6983 - 2008 (RPC)

Condition de livraison : Tréfilé à froid

Tolérance : Selon GB/T 14981 (RPC) ou selon les exigences du client.

Qualité de surface : Selon GB/T 701 (RPC)

Inspection et règle de ré-inspection : Selon GB/T 2101 (RPC)

Emballage : Enveloppé de film étanche à l'eau et monté sur des palettes en bois.

Poids du faisceau : 30 - 100 kg ou selon les exigences du client.

Propriétés physiques :

? Densité : 7,85 g/cm3

? Dureté de surface : HV5 ≤ 195 / HBS 50 - 80

? Résistance à la traction (R?) : 176 - 274 MPa

? Réduction de surface (Z) : 70% - 80%

? Limite d'élasticité (R?L) : 160  MPa

? Ténacité au choc (KV) : 160 - 200 J/cm2

? Allongement après rupture (A) : 30% - 50%

Propriétés magnétiques :

Coercivité (Hc) : ≤ 96 A/m

Perméabilité maximale (μ?) : 0,0075 H/m

Induction magnétique : Veuillez vous référer au tableau des propriétés magnétiques.

Composition chimique :

Exigences de la norme

C ≤ 0,010, Si ≤ 0,100, Mn ≤ 0,250, P ≤ 0,0150, S ≤ 0,010,

Al 0,2~0,8, Ti ≤ 0,020, Cr ≤ 0,10, Ni ≤ 0,050, Cu ≤ 0,050

Composition chimique : Référence typique / réelle

C ≤ 0,0050, Si ≤ 0,020, Mn ≤ 0,16, P ≤ 0,012, S ≤ 0,003,

Al  0,300, Ti ≤ 0,010, Cr ≤ 0,030, Ni ≤ 0,010, Cu ≤ 0,01

Caractéristiques clés :

(1) Excellentes propriétés électromagnétiques : Faible coercivité (Hc), haute perméabilité (μ), haute densité de flux magnétique de saturation (Bs), aimantation stable et absence de vieillissement magnétique.

(2) Haute pureté : La série de fer pur électromagnétique est composée d'aciers complètement tués et subit des processus de raffinage, ce qui entra?ne une structure interne dense, uniforme et supérieure avec une faible teneur en gaz. La teneur typique en carbone dans le produit fini est<0.004%, which provides reliable conditions for users to simplify and shorten the part annealing process.

(3)、Good Cold and Hot Workability:

Cold working such as turning, upsetting, punching, bending, and drawing can be performed without issues.

Hot working, such as re-forging or re-rolling, shows low sensitivity to red shortness. Many grades have no red-shortness range, allowing processing within a wide temperature window.

(4)、Good Surface Quality: Exhibits excellent weldability and plating performance.

(5)、High Dimensional Accuracy: Can supply ultra-precision cold-rolled sheets. For sheet thickness ≤1.5mm, the thickness tolerance can be guaranteed within ≤±0.03mm; for thickness >1.5mm, the tolerance is within ≤±0.05mm.

Applications:

Electromagnetic pure iron is primarily used in the electrical, telecommunications, instrumentation, and advanced defense industries to manufacture electromagnetic components and iron cores.

1.  Relay Cores, Armatures, and Yokes in electrical and telecommunications systems: For relays in automatic telephones, railway signal relays, and various purpose relays (e.g., thermal, pulse, time-delay, special type) used in communication and automatic control systems, as well as relays for electrical control equipment.

2.  Core Material for Electromagnets: Iron cores for bending and focusing magnets in high-energy accelerators, acoustic devices, solenoid valves, and electromagnets for magnetic separation equipment.

3.  Soft Magnetic Components for Instruments and Meters: High-resolution pole pieces for analytical instruments, electromagnetic separators and detectors in geological instruments, focusing magnets for electron microscopes and electromagnetic lenses for scanning electron microscopes, aircraft automatic control components, and pole pieces for magnetizers.

4.  Cores and Housings for DC Motors: Such as those used in aviation DC motors.

5.  Electrical and Magnetic Parts for Automobiles, Tractors, and Machine Tools: Including automotive voltage regulators, flashers, starters, horns, electromagnetic chucks for machine tools, magnetic plates, and other magnetic conduits.

6.  Magnetic Shielding Equipment: Various magnetic shielding casings or boxes, and shielding materials for applications requiring high shielding effectiveness.

Ordering Instructions:

(1) Select the correct grade: Grades DT3 and DT3A do not guarantee freedom from magnetic aging. For guaranteed non-aging properties, order DT4 (A, E, C). Magnetic performance levels are Standard, Advanced (A), Extra High (E), and Super (C). For higher magnetic performance, specify higher grades (E, C).

(2) Guaranteed properties: The electromagnetic pure iron series generally guarantees electromagnetic performance; chemical composition is not the acceptance criterion unless specified by the customer in the contract.

(3) Magnetic annealing: The electromagnetic properties of our products are measured on test samples after magnetic annealing. However, products are delivered in hot-rolled, hot-forged, or softened annealed (for cold-rolled/cold-drawn material) conditions. Therefore, to fully realize the material's magnetic potential, parts must undergo magnetic annealing after manufacturing.

* Simplified Annealing Process (if carbon content ≤ 0.007%): 850°C for 3 hours.

* Standard Annealing Process (if carbon content > 0.007%): Follow the process specified by the Chinese National Standard (GB).

(4) Standard magnetic tests: Typically, only coercivity (Hc) and post-aging coercivity are routinely tested. If guarantees for magnetic induction (B) or maximum permeability (μm) are required, please specify this in the contract.

(5) High-precision cold-rolled material: For extra-thickness precision in cold-rolled materials, please order Super Precision Cold-Rolled Sheet according to standard YB(T) 34-86.

(6) Custom specifications: For requirements exceeding current GB or YB(T) standards, we can negotiate and establish a separate technical agreement for supply.

(7) Delivery time: For standard, non-processed goods, the delivery period is typically 1-2 working days. For goods requiring additional processing, the delivery time will be determined based on the complexity of the drawings.

(8) Contact for more information: For further data, inquiries, market information, technical knowledge, or quotes, please call our customer service hotline at 400-698-0073.

(9) Information accuracy disclaimer: Due to the vast amount of online information, prices and delivery terms listed on websites may not alwayss être actuel. Nous apprécions votre compréhension. Veuillez nous contacter directement pour obtenir des informations précises et à jour. Tous les détails sont soumis à confirmation finale lors de la demande.
