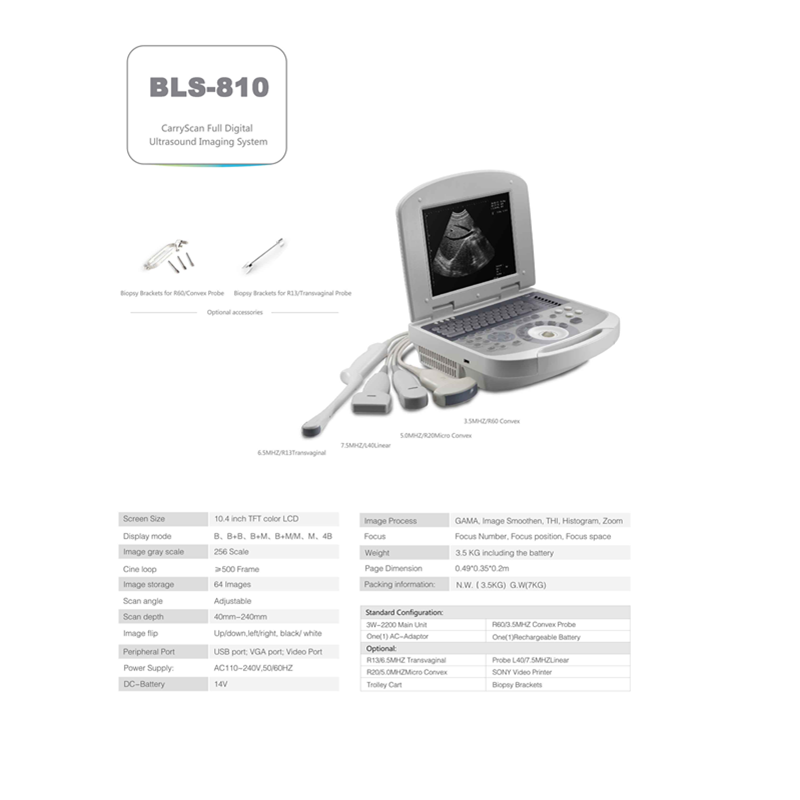

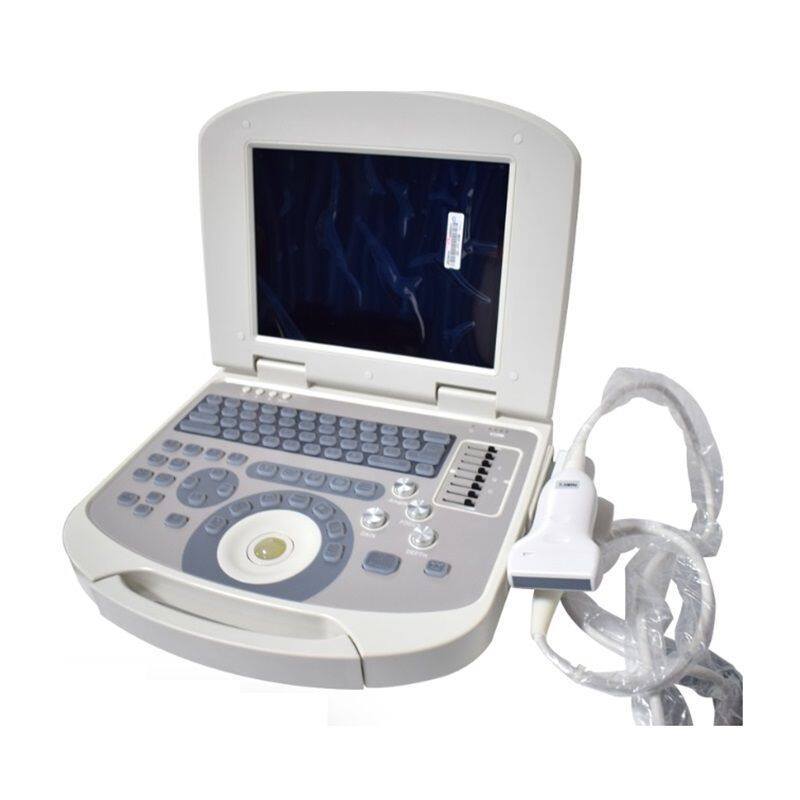

Technische Parameter des bls-810 digitalen Ultraschalldiagnosesystems

1. Anzeigemodus: B, 2b, 4b, B / m, M.

2. Technologien wie TGC-Steuerung, Rahmenkorrelation, Graustufenumwandlung, Kantenverst?rkung, horizontales Filtern, dynamisches Filtern und andere sorgen für ein klares, stabiles und hochaufl?sendes Bild.

3. Queraufl?sung ≤ 3 mm (Tiefe ≤ 80), ≤ 4 mm (80

4. Probe interface: 1.

5. Display: ≥ 10 inches

6. Image processing technology: controllable frame correlation, gamma correction, edge enhancement, image smoothing, image noise reduction, automatic gain adjustment, image up and down, left and right, (90 ° and 270 ° o) flip;

7. Image magnification: stepless amplification; real time dynamic PIP picture in picture partial discharge function;

8. Image archiving, browsing, comparison, storage, printing and transmission functions; at least 100 images can be permanently stored in the machine, and the pictures can be viewed in full screen in slide mode;

9. Support USB flash disk, the software can be automatically upgraded through the U disk, and the image can be stored or read in the U disk;

10. Automatic measurement and calculation, ratio measurement, line stenosis ratio, face stenosis ratio, angle measurement; puncture guidance, histogram, cross-sectional view;

11. Image processing preset and one key optimization function, doctors can set more than 8 groups of parameters in advance according to clinical needs;

12. Body mark: more than 40 body marks;

13. The diagnosis system works continuously for more than 8h

14. Puncture guidance: with probe puncture guide device

15. Medical record information database system, patient information storage, retrieval, management functions;

16. Diagnostic measurement formula preset system, which can set different formulas according to different races;

17. Automatic measurement software for obstetrics, gynecology, small organs, heart, urinary and other departments, automatic report generation system, connected with laser printer, can directly print A4 diagnosis report;

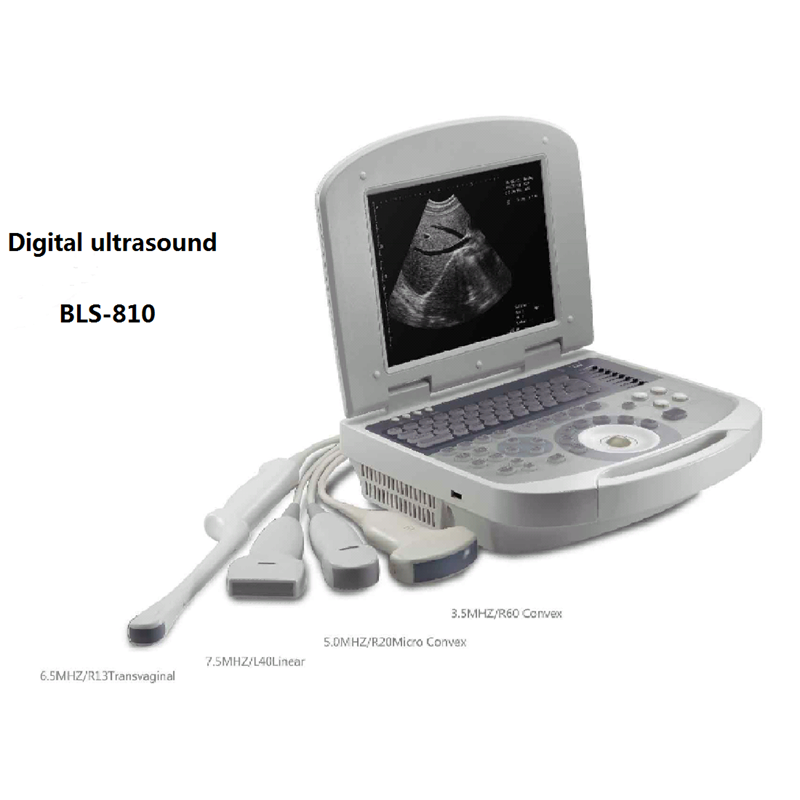

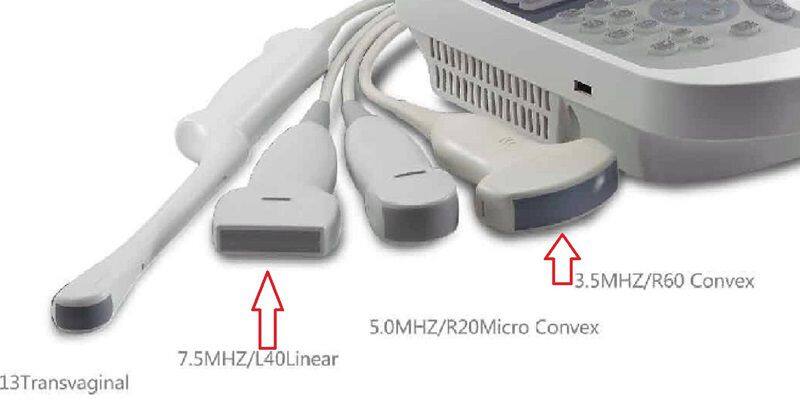

18. Configuration: one mainframe, one convex array probe (abdomen), one linear array probe (small organ), one cavity probe (female probe).
